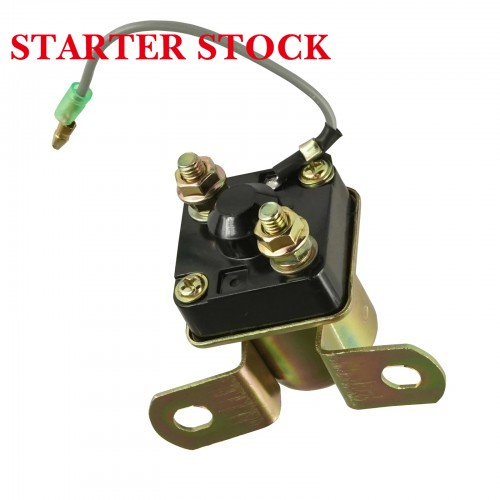

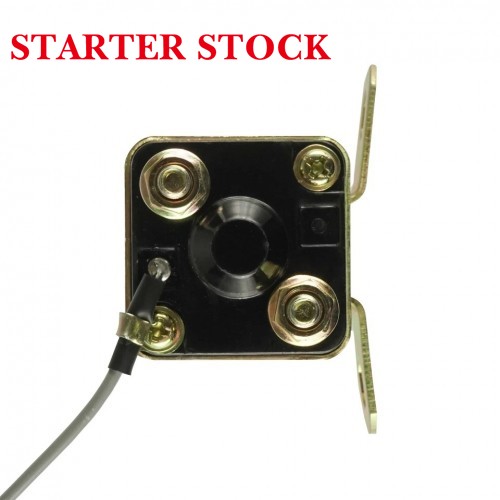

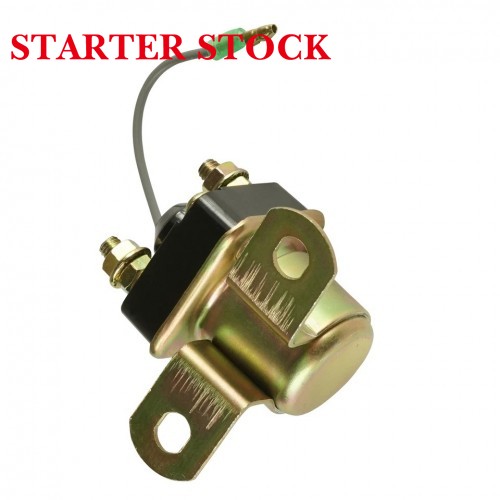

Starter Solenoid Relay for Polaris Snowmobile 340 Classic 2004-2006
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
Compatible with Polaris Snowmobile Models:
340 Classic 2004-2006

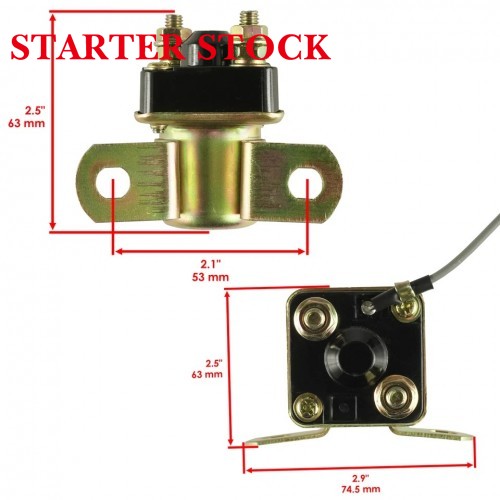

OE Part Number Interchange 4010930, 4011252, 4011336 Voltage Rating 12V DC Terminal Configuration 2 x 5/16" heavy-duty power terminals, 2 x 1/4" signal terminals Maximum Current Capacity 200A continuous, 350A peak overload Housing Material High-impact heat-resistant ABS core, stainless steel protective casing Seal Protection Grade IP65 waterproof, dustproof, corrosion-resistant Mounting Hole Spacing 51mm (2") center-to-center Operating Temperature Range -40°F to 185°F (-40°C to 85°C) Coil Resistance 12Ω ± 10% Warranty Period 12-month manufacturer defect warranty Vibration Resistance Rating 10G peak acceleration, 10-2000Hz frequency range Contact Material 99.9% high purity copper, silver plated for low resistance
