For Kawasaki Models:
Jf650 Ts 1989-1996

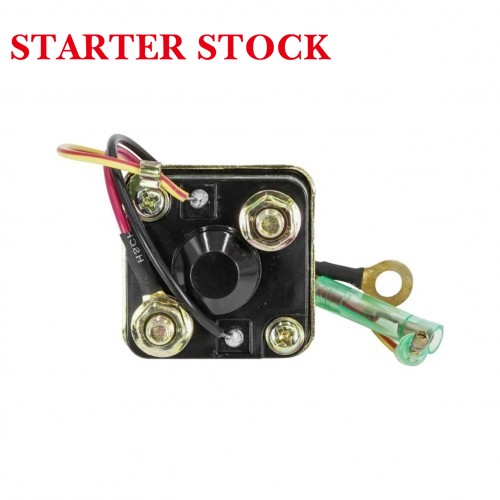

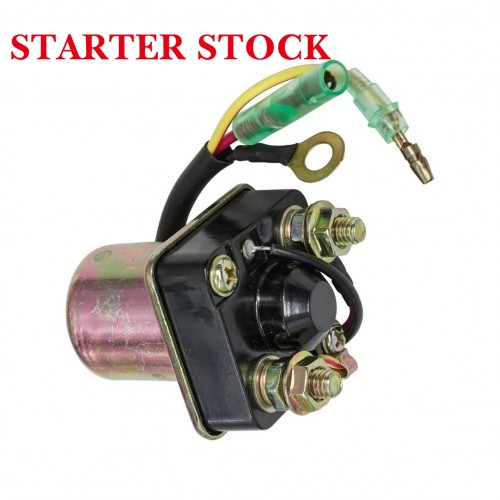

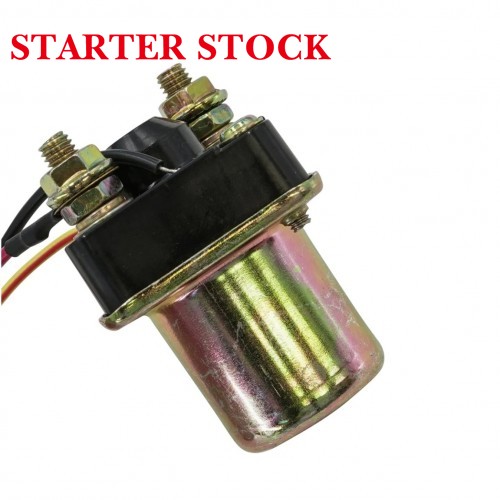

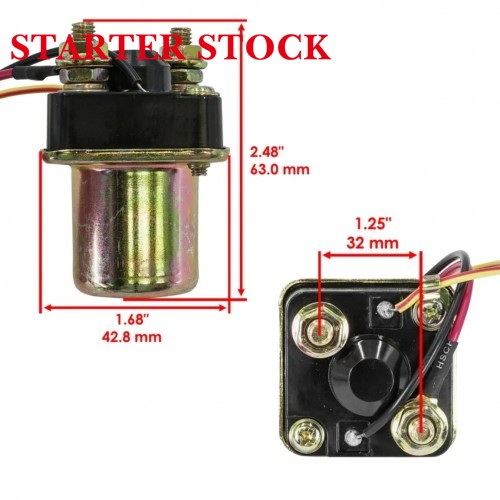

Product Type Starter Relay Solenoid Housing Material Flame-retardant reinforced ABS Core Conductor Material High-purity oxygen-free copper Rated Working Voltage 12V DC Maximum Load Current 30A Protection Rating IP65 waterproof, dustproof and shock-resistant Operating Temperature Range -40℃ to 125℃ (-40℉ to 257℉) Number of Terminals 4 pin (2 power terminals, 2 signal terminals) Mounting Hole Center Distance 40mm / 1.57 inch Mounting Hole Diameter 6mm / 0.24 inch Service Life ≥ 100,000 on-off cycles Replacement OEM Reference Number 27010-3722, 27010-3760 Installation Feature Direct fit replacement, no modification required
