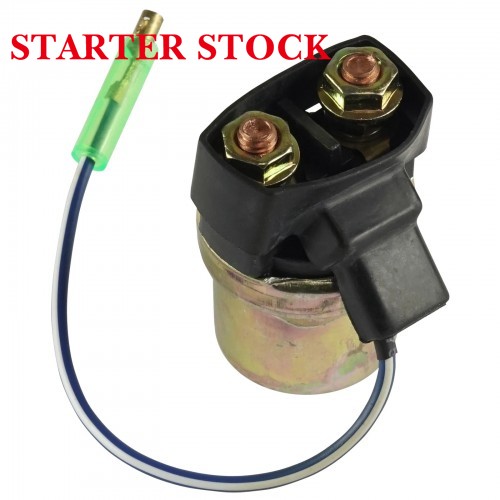

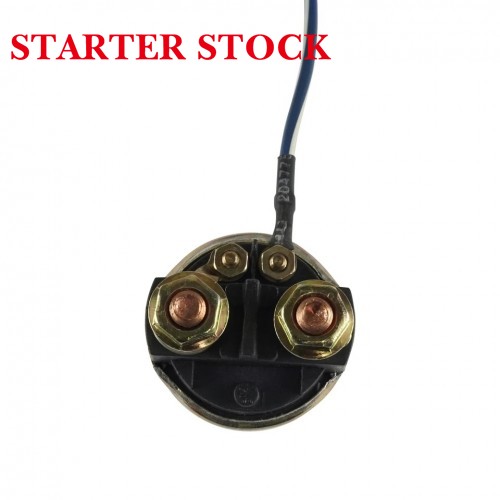

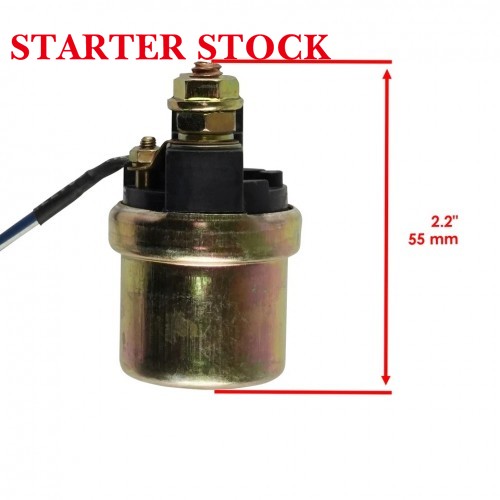

Starter Relay Solenoid for Motorcycle Yamaha FJ1100 1984-1985
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
For Yamaha Models:
Fj1100 1984-1985

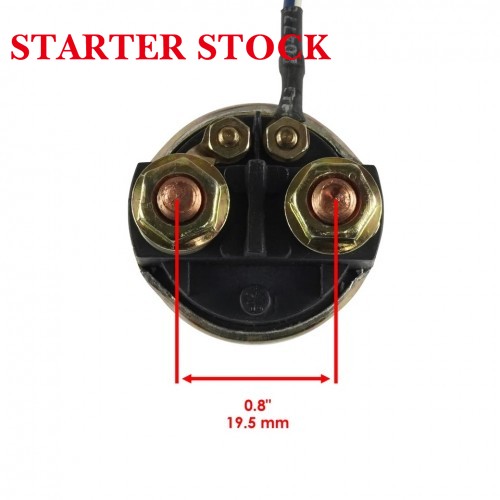

Voltage Rating 12V DC Coil Resistance 12Ω ± 10% Maximum Contact Current Rating 150A Mounting Hole Diameter 6mm Terminal Configuration 2 x M6 threaded power terminals + 2 x 6.3mm spade control terminals Housing Material Reinforced flame-retardant PA66 nylon Operating Temperature Range -40°C to 125°C Ingress Protection Rating IP65 Minimum Service Life 50,000 actuation cycles Compatible OE Part Number 3GD-81940-00-00 Outer Shell Color Black with silver metal terminals Seal Material Oil-resistant nitrile rubber
