For Can-Am Models:
DS 650 2004-2005DS 650 X 2004-2007

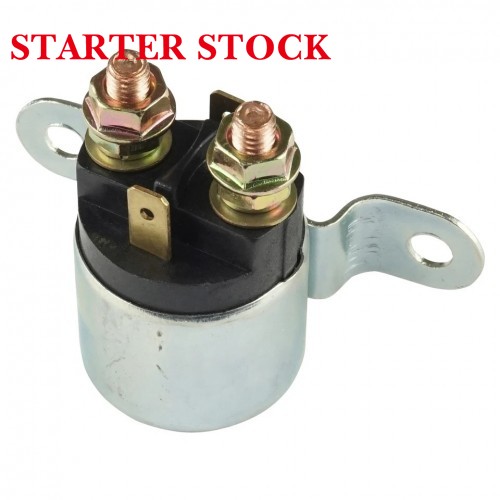

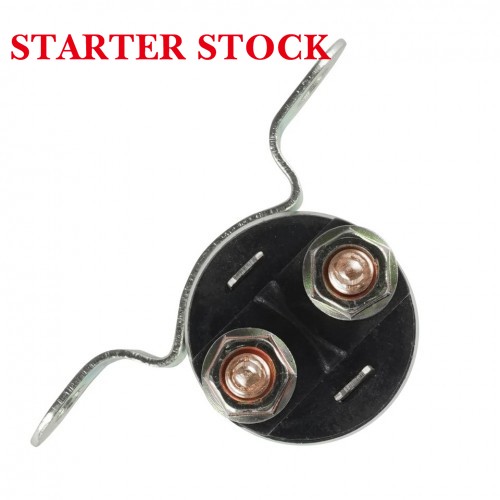

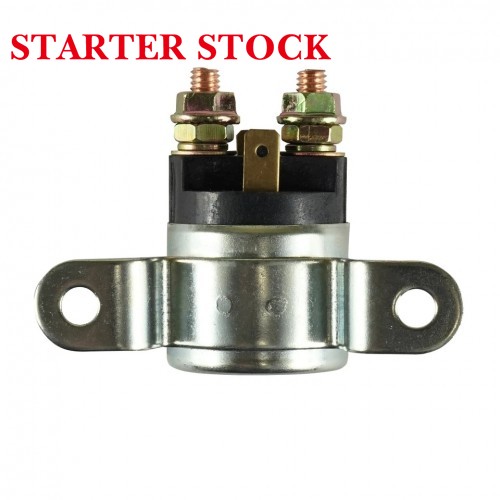

OEM Part Number 710007777 Cross Reference Part Numbers 710000110, 710000267, 278000513, 278001802 Rated Voltage 12V DC Rated Current Capacity 150A Terminal Configuration 4 Pin (2 large power terminals, 2 small signal terminals) Housing Material Flame Retardant ABS Plastic Internal Contact Material High Conductivity Tinned Copper Alloy Operating Temperature Range -40°C to 125°C (-40°F to 257°F) Ingress Protection Rating IP65 Dustproof & Splash Resistant Mounting Hole Diameter 6mm (0.24 inch) Minimum Service Life 100,000 operation cycles Compatible Vehicle Type Off-road all-terrain vehicle (ATV) Pre-shipment Test Standard 100% load and continuity tested before delivery Warranty Period 12 months from date of purchase Weight 120g (0.26 lbs)
