For Yamaha Models:
Ar230 Srt1100 2005-2006

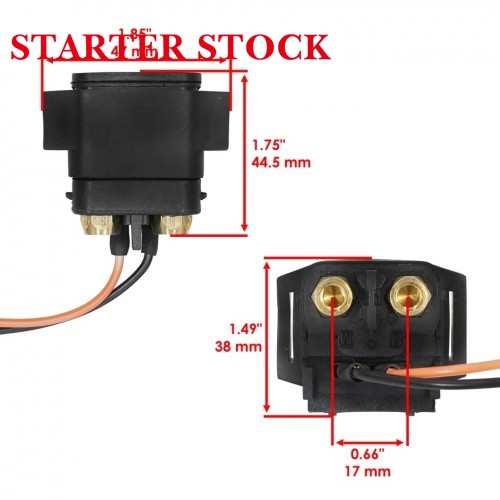

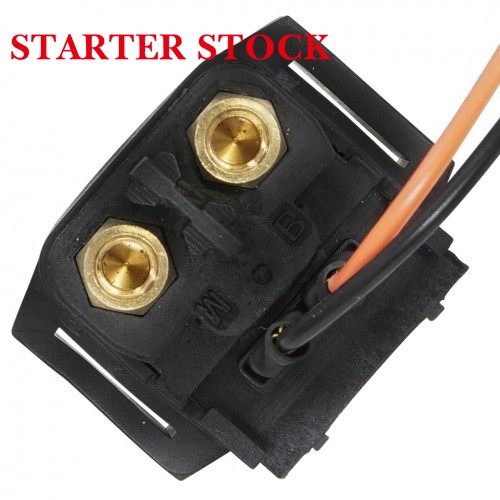

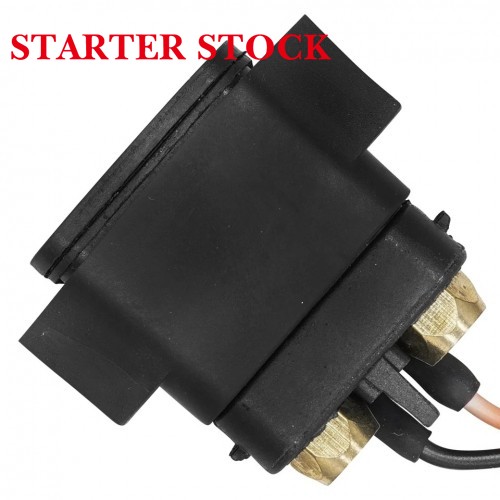

Product Type Starter Relay Solenoid Material Construction Copper wound core coil, high heat-resistant ABS housing, corrosion-resistant zinc alloy terminals Nominal Voltage Rating 12V DC Terminal Configuration 3 terminals (1 signal input terminal, 2 high-current output terminals) Operating Temperature Range -40°C to 125°C (-40°F to 257°F) Waterproof Protection Rating IP67, dustproof and submersible up to 1m for 30 minutes Equivalent OEM Part Number 6B6-81940-00-00 Mounting Hole Diameter 6mm (0.24 in) Coil Internal Resistance 15Ω ± 10% tolerance Rated Service Life ≥ 100,000 normal operation cycles
