Starter Solenoid Relay for Motorcycle Suzuki Gn125 1991-1997
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
For Suzuki Models:
Gn125 1991-1997

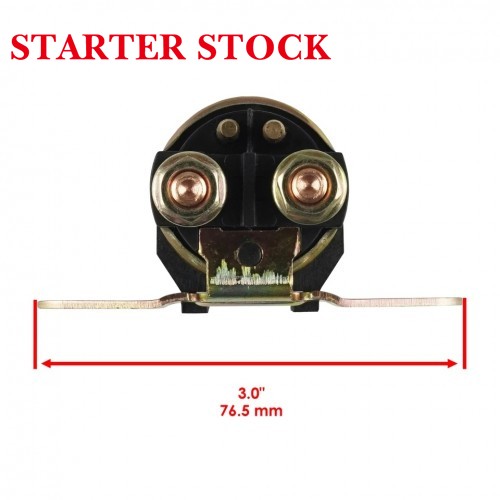

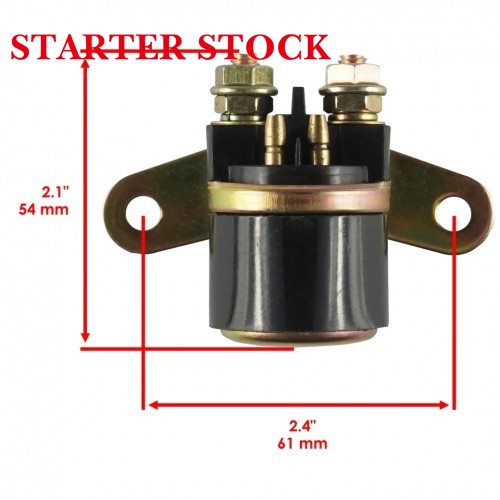

Compatible OEM Reference Numbers 31800-05300, 31800-05310, 31800-10D00 Operating Voltage 12V DC Terminal Configuration 2 x M6 large power terminals, 2 x 4.8mm small signal terminals Mounting Hole Center Spacing 52mm / 2.05 inches Housing Material Flame-retardant high-temperature resistant ABS Internal Contact Material Silver-plated pure copper Rated Maximum Current Load 150A Ingress Protection Rating IP65 Installation Type Direct plug-and-play replacement, no modification required Warranty Period 12 months from date of purchase Working Temperature Range -40℃ to 125℃ / -40℉ to 257℉
