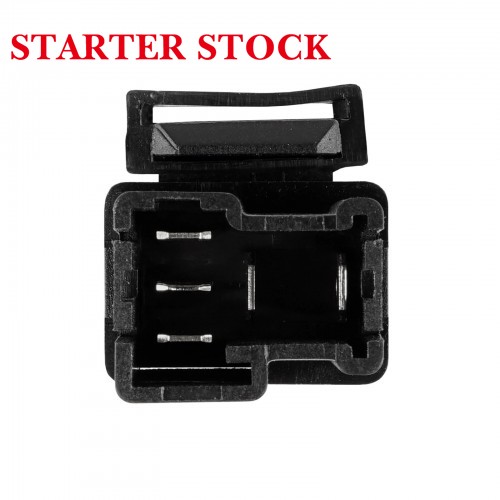

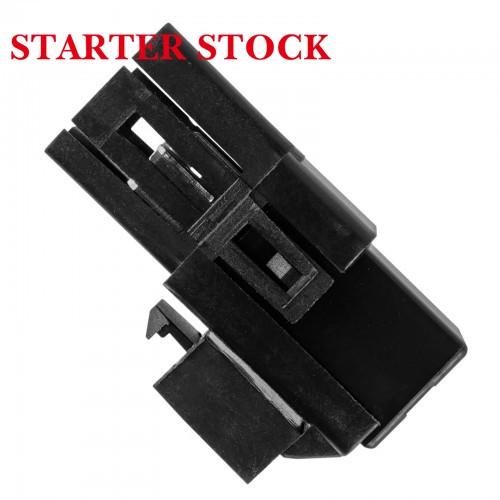

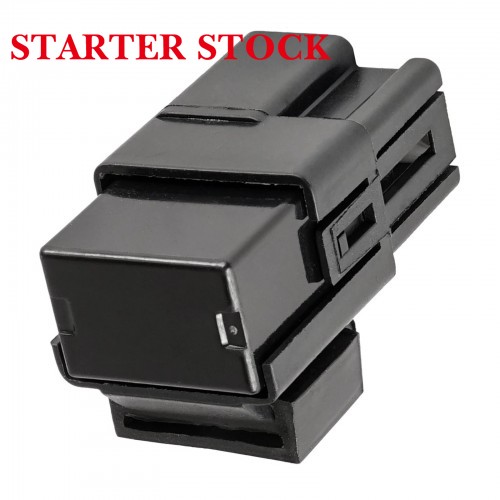

Starter Relay for Yamaha FJR1300A ABS 2007 2009
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
Compatible with Yamaha Models:
FJR1300A ABS 2007 2009
Product Type Starter Solenoid Relay OEM Part Number Cross Reference 4YR-81940-00-00, 5JW-81940-00-00 Rated Voltage 12V DC Coil Resistance 14-16 Ohms Continuous Current Rating 80A Peak Current Withstand Capacity 150A (10s duration) Number of Terminals 4 Pin Terminal Material Silver Plated Pure Copper Housing Material Flame Retardant High Temperature Resistant ABS Waterproof Grade IP65 Operating Temperature Range -40℃ to 125℃ Mounting Hole Diameter 6.5mm Service Life ≥ 100,000 operation cycles
