For Ski-Doo Models:
SUMMIT 800 HO, ADRENALINE & X 2006

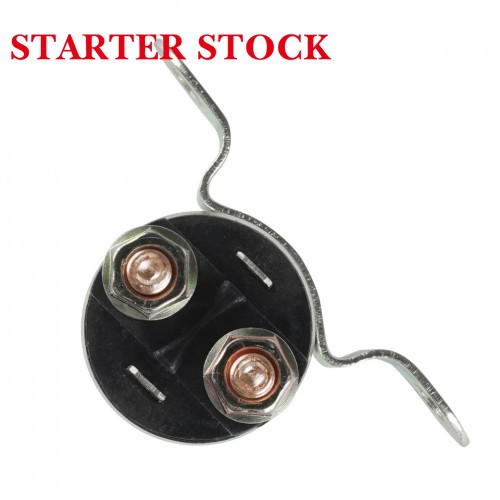

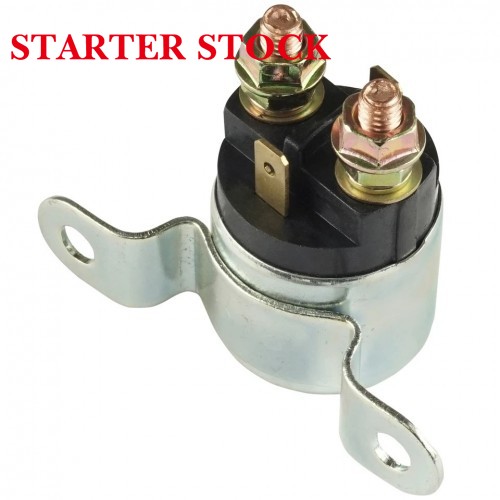

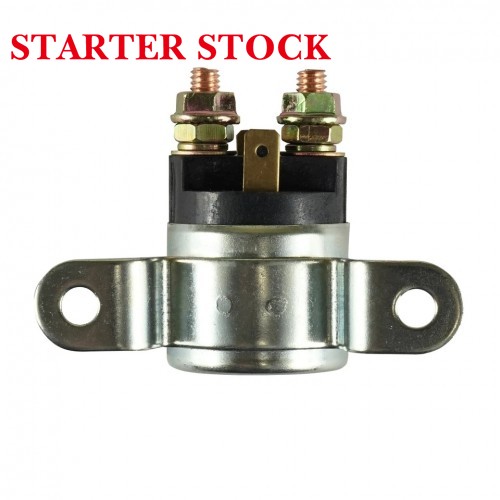

Part Type Starter Solenoid Relay OEM Equivalent Part Numbers 515176163, 515176276 Voltage Rating 12V DC Terminal Configuration 4-Terminal (2 x 5/16" heavy-duty power terminals, 2 x 1/4" signal terminals) Housing Material Reinforced heat-resistant ABS plastic with corrosion-resistant zinc alloy base Contact Material High-conductivity pure copper with silver plating for extended service life Operating Temperature Range -40°F to 185°F (-40°C to 85°C) Mounting Style Direct bolt-on OE fit, no drilling or modification required Ingress Protection Rating IP65 dustproof and water-resistant, suitable for harsh winter riding conditions Service Life Rating Minimum 50,000 operation cycles under rated load Compatibility Note Fits carbureted 800 HO engines only, not compatible with EFI powertrain variants
