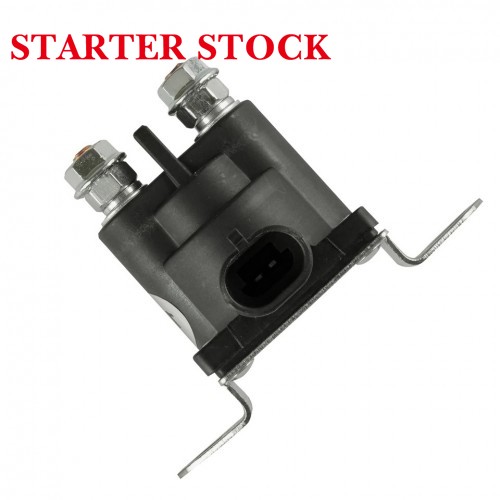

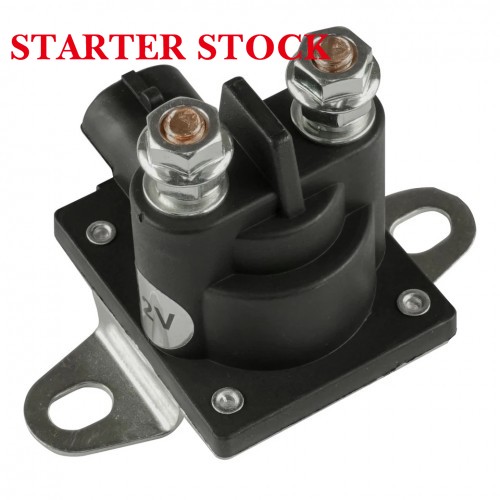

Starter Solenoid Relay for Ski-Doo Renegade 550f Sport 2014
1Piece Minimum order
PRODUCT PARAMETERS
Type |
Relay |
|---|---|
Category |
Automotive |
Brand |
Xiaoxibian |
For Ski-Doo Models:
Renegade 550f Sport 2014

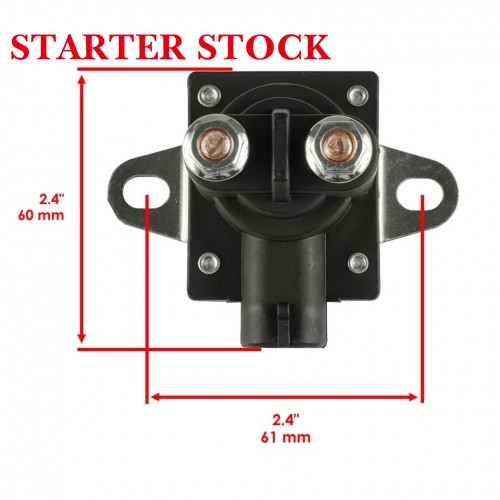

Product Type Starter Solenoid Relay Compatible OEM Part Numbers 515176259, 515177299, 278003012 Voltage Rating 12V DC Terminal Configuration 4 Pin (2 large power terminals, 2 small control terminals) Housing Material Heat-resistant flame-retardant ABS Conductor Material High-conductivity pure copper core Operating Temperature Range -40°F to 185°F (-40°C to 85°C) Waterproof Ingress Protection Rating IP65 Mounting Hole Diameter 6mm (0.24 inch) Rated Service Life ≥10,000 continuous operating cycles Corrosion Resistance Passes 48-hour neutral salt spray test Fitment Note Direct plug-and-play replacement, no modification required for listed model
