Voltage 12 V
Rated Current 40 A
Maximum Switching Current NO/NC: 40A/30A
Maximum Switching Voltage 80VDC
Contact Arrangement 1A Normally Open

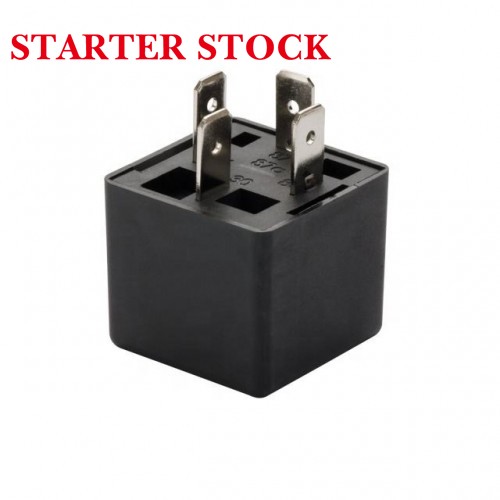

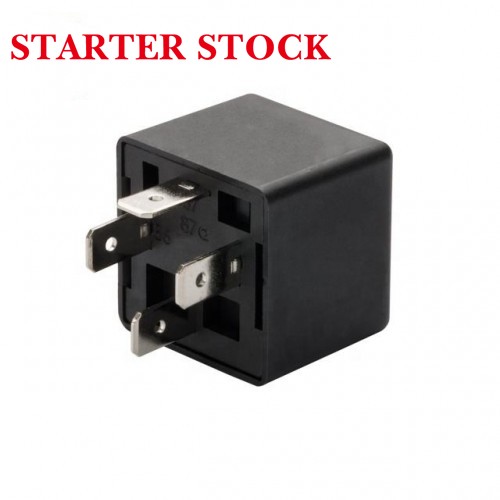

Coil Rated Power 1.7W Operating Voltage Range 9V DC to 32V DC Contact Material Silver Tin Oxide (AgSnO₂) Mechanical Lifespan ≥10,000,000 operations (no load condition) Electrical Lifespan ≥100,000 operations (at rated load) Insulation Resistance ≥1000 MΩ (tested at 500V DC) Dielectric Withstand Voltage 1500V AC (between coil and contact, 1 minute duration) Operating Temperature Range -40°C to +125°C Protection Class IP40 (dust-resistant, suitable for under-hood automotive installation) Termination Type 4-pin 6.3mm standard spade connector
