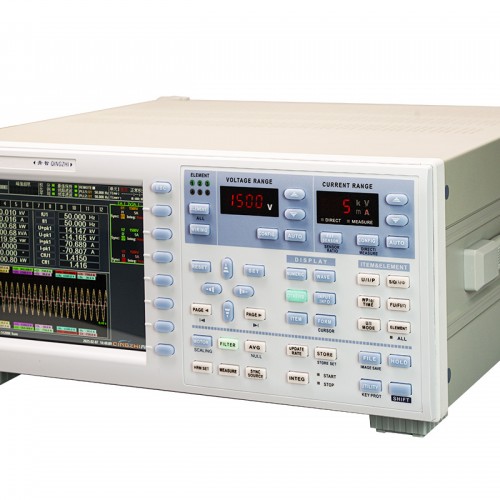

8966C1:
Input Unit: 1 to 8 channels or 7 channels + 2 motor board cards
Basic Accuracy: 0.01 class ±(0.01% of reading + 0.04% of range)
Measurement Bandwidth: DC & 0.5Hz-2MHz
Input Range:
Voltage accuracy ≤ ± (0.01% reading + 0.04% range);
Voltage range: 8 gears, support manual/automatic switching;
1500V gear: 1500V, 600V, 300V, 150V, 100V, 60V, 30V, 15V
Current accuracy ≤ ± (0.01% reading + 0.04% range)
Current range: 8 gears, support manual/automatic Switching;
50A gear: 50A, 20A, 10A, 5A, 2A, 1A, 0.5A, 0.2A
5A gear: 5A, 2A, 1A, 0.5A, 0.2A, 0.1A, 0.05A, 0.02A
Sensor 1V gear: 1V, 0.5V, 200mV, 100mV, 50mV, 20mV, 10mV, 5mV
Sensor 10V position: 10V, 5V, 2V, 1V, 0.5V, 200mV, 100mV, 50mV
Sensor 200mA position: 200mA, 100mA, 50mA, 20mA, 10mA, 5mA, 2mA
Sensor 1A position: 1A, 0.5A, 200mA, 100mA, 50mA, 20mA, 10mA
Measurement Parameters:
Voltage (U), Current (I), Frequency (f), Active Power (P), Reactive Power (Q), Apparent Power (S), Power Factor (PF), Peak Voltage (U±PK), Peak Current (I±PK), Crest Factor (CF), Energy Accumulation (E), Harmonic Distortion, Harmonic Components, Efficiency, etc.
Overload Capacity: 120% of the voltage and current ranges
Sampling Rate: 2 MS/s (16-bit simultaneous sampling for voltage and current)
Line Filtering:
Analog Filter: Cutoff frequency of 500Hz
Digital Filter: Cutoff frequency of 1KHz to 100kHz.
(Continuously adjustable in steps of 100Hz up to 10KHz, continuously adjustable in steps of 1KHz above 10KHz).
Frequency filter: Cutoff frequency is 500Hz.
Harmonic Analysis:
Up to 500 harmonic orders can be analyzed, including current harmonics, voltage harmonics, and power harmonics (both odd and even orders). The harmonic analysis function supports dual-list display, vector diagrams, and bar charts for comprehensive visualization.
Efficiency Measurement: Capable of testing input-to-output efficiency.
Speed and Torque Measurement: Optional speed-torque interface available.
Display: 8-inch color TFT LCD touchscreen with 800×600 pixel resolution (horizontal×vertical).
Communication Interfaces: Standard configuration includes USB, RS232, RS485, and Ethernet ports; equipped with a USB 3.0 interface and storage device with 32GB or higher capacity.
Data Transmission: Standard protocols include MODBUS RTU, MODBUS TCP, and SCPI. Equipped with a proprietary converter for seamless conversion between MODBUS-RTU/TCP and CAN/CAN FD/CANopen bus protocols.
Instrument Weight: about 12Kg
Power Consumption: ＜25VA
Working Power Supply: AC 85V～265V，50/60Hz
Overall Dimension: W×H×D 442*198*435
Insulation Standards: DC1000V CATⅡ and DC600V CATⅢ
Working Environment:
Temperature -35℃～+40℃
Humidity 0%RH～80%RH
