Engine Parts Rubber High Quality Timing Belt 111ru25 | starterstock

PRODUCT DETAILS

Engine Parts Rubber High Quality Timing Belt 111ru25picture1

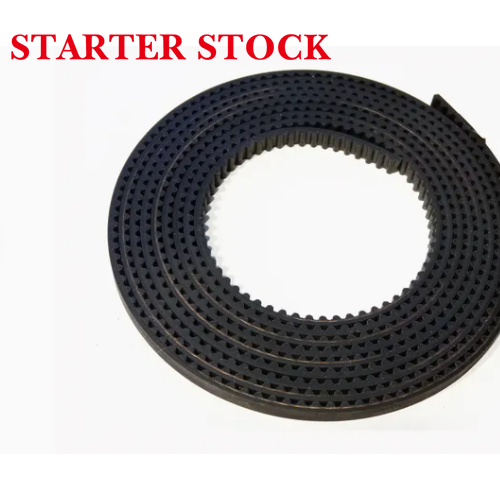

Engine Parts Rubber High Quality Timing Belt 111ru25picture2

Engine Parts Rubber High Quality Timing Belt 111ru25picture3

Engine Parts Rubber High Quality Timing Belt 111ru25picture4

Engine Parts Rubber High Quality Timing Belt 111ru25picture5

Engine Parts Rubber High Quality Timing Belt 111ru25

$0.00

1Piece Minimum order

Jinhua Dayangren Trading Co., Ltd

Business type: Motorcycle parts

PRODUCT PARAMETERS

Brand	Kia

T-toothed timing belt	TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range	Pitch length
T-toothed timing belt	TYPE	Pb	2y°	s	hg	rr	ra	H	teeth number range	Pitch length
	MXL	2.023	40	1.14	0.51	0.13	0.13	1.14	43~2044	87.38~4153.41
	XXL	3.175	50	1.73	0.76	0.20	0.20	1.52	46~124	146.05~393.70
	XL	5.085	50	2.57	1.27	0.38	0.38	2.3	22~510	111.76~2590.80
	L	9.525	40	4.65	1.91	0.51	0.51	3.6	23~530	219.08~5048.25
	H	12.700		6.12	2.29	1.02	1.02	4.3	29~440	368.30~5588.00
	XH	22.225		12.57	6.35	1.57	1.57	11.2	53~220	1177.93~4889.50
	XXH	31.750		19.05	9.53	2.29	2.29	15.7	56~144	1778.00~4572.00
	T2.5	2.5	40	1.50	0.70	0.2	0.2	1.3	42~312	105.00~780.00
	T5	5		2.65	1.20	0.4	0.4	2.2	30~400	150.00~2000.00
	T10	10		5.30	2.50	0.6	0.6	4.5	34~536	340.00~5360.00
	T20	20		10.15	5.00	0.8	0.8	8.0	61~181	1220.00~3620.00

HTD-toothed timing belt	TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range	Pitch length
HTD-toothed timing belt	TYPE	Pb	2y°	s	hg	rr	ra	H	teeth number range	Pitch length
	3M	3	14	1.78	1.17	0.24-0.30	0.87	2.4	35~1000	105.00~3000.00
	5M	5		3.05	2.06	0.40-0.44	1.49	3.8	35~852	175.00~4260.00
	8M	8		5.15	3.36	0.64-0.76	2.46	6.0	36~565	288.00~4520.00
	14M	14		9.40	6.02	1.20-1.35	4.50	10.0	56~340	784.00~4760.00
	20M	20		14.00	8.40	1.77-2.01	6.50	13.20	100~260	2000.00~5200.00

STPD/STS-toothed timing belt	TYPE	Pitch	Bottom tooth thickness	Tooth height	Fillet radius	Fillet	Tip	Belt thickness	teeth number range	Pitch length
STPD/STS-toothed timing belt	TYPE	Pb	s	hg	rbb	rr	ra	H	teeth number range	Pitch length
	S2M	2	1.3	0.76	1.3	0.20	0.20	1.36	44~1914	88.00~3828.00
	S3M	3	1.95	1.14	1.95	0.30	0.30	1.94	41~500	123.00~1500.00
	S4.5M	4.5	2.93	1.71	2.93	0.45	0.45	2.81	40~201	180.00~904.50
	S5M	5	3.25	1.91	3.25	0.50	0.50	3.41	30~560	150.00~2800.00
	S8M	8	5.20	3.05	5.20	0.80	0.80	5.30	53~500	424.00~4000.00
	S14M	14	9.10	5.30	9.10	1.40	1.40	10.2	69~322	966.00~4508.00

RPP/HPPD-toothed timing belt	TYPE	Pitch	Bottom tooth thickness	Tooth height	Belt thickness	teeth number range	Pitch length
RPP/HPPD-toothed timing belt	TYPE	Pb	s	hg	H	teeth number range	Pitch length
	P2M	2	1.30	0.73	1.3	56~612	112.00~1224.00
	P3M	3	1.95	1.09	2.1	30~621	90.00~1863.00
	P5M	5	3.25	1.81	3.6	36~400	180.00~2000.00
	P8M	8	5.20	2.90	5.5	40~550	320.00~4400.00
	P14M	14	9.50	6.00	10.0	69~327	966.00~4578.00
