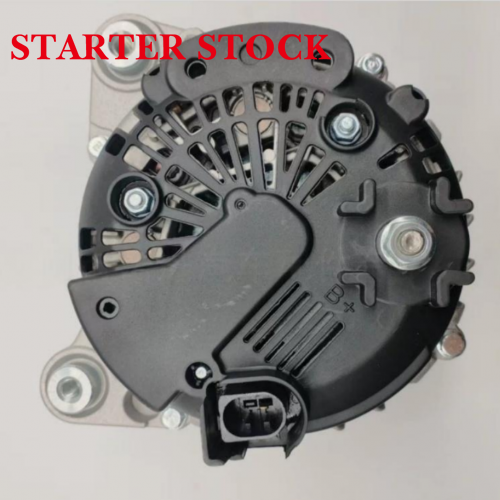

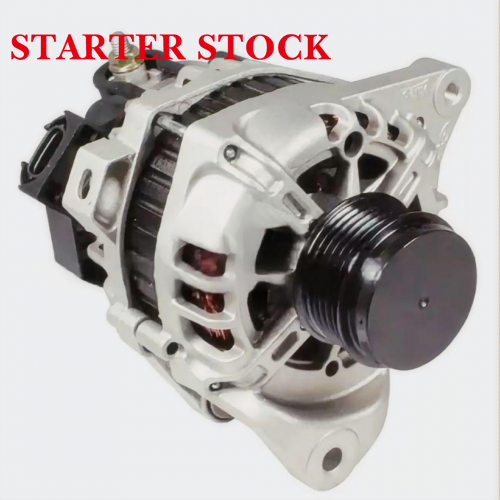

03G903016LX Compatible Alternator for Audi Volkswagen 12V 180A | Bosch Replacement 0-121-715-077 0-121-715-177 | 6 Groove Clutch Pulley Built-in Fan & Regulator
1Piece Minimum order
PRODUCT PARAMETERS
OEM |
03G903016LX |
|---|
Fitment Brands
Audi, Volkswagen (VW), Bosch, Hella
Replacement OEM Numbers
Audi / Volkswagen: 03G903016LX
Bosch: 0-121-715-077, 0-121-715-177, 0121715177
Bosch European Service: 0-986-081-920
Hella: 8EL 738 213-411, 8EL738213411
Specification Category | Details |
|---|---|
Product Name | Alternator |
Voltage | 12V |
Current | 180A |
Fan Type | Built-in Fan |
Regulator Type | Built-in Regulator |
Pulley Grooves | 6 Grooves |
Pulley Type | Clutch Type |
Pulley Outer Diameter | 2.102 Inches / 53.4 Millimeters |
Serpentine Belt Groove OD | 1.949 Inches / 49.5 Millimeters |
Mounting Hole 1 | 8.5mm (Unthreaded), Thickness: 0.559 Inches / 14.2mm |
Mounting Hole 2 | M8-1.25 (Threaded), Thickness: 0.787 Inches / 20mm |
Mounting Hole 3 | 8.5mm (Unthreaded), Thickness: 0.559 Inches / 14.2mm |
Mounting Hole 4 | M8-1.25 (Threaded), Thickness: 0.787 Inches / 20mm |
B+ Terminal | M8-1.25 |
LIN Terminal | Spade Connector |
N/C Terminal | Spade Connector |
Net Weight | 16.85 LBS / 7.66 KG |
