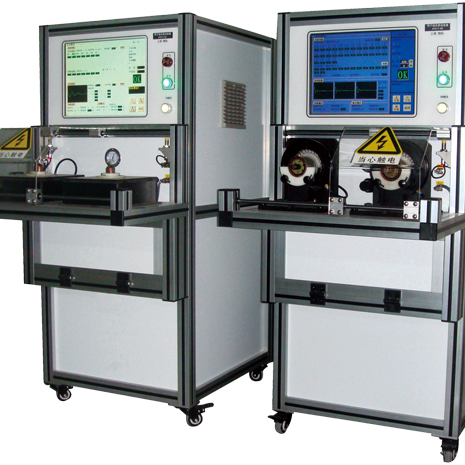

ATS-Y-01:

Number of bars: ≤24

Test Description: ≤±0.5%(Full-Scale)

Welding resistance: ±10μΩ

180℃ resistance: ≤±0.5%(Full-Scale)

Surge: ±2.5%

Isolation resistance: 0.1-500MΩ ≤±2.5%(Full-Scale)

Hipot: 0-20mA ≤±2.5%(Full-Scale)

Size of Equipment: 930mm×1240mm×560mm

Equipment environment:

Power: AC220V ±10% @50Hz

Air pressure: 0.4-0.6Mpa

Temperature: 0-45℃

The equipment is designed according to the modularization of testing functions, which makes the work more stable and the repair and maintenance more convenient.
