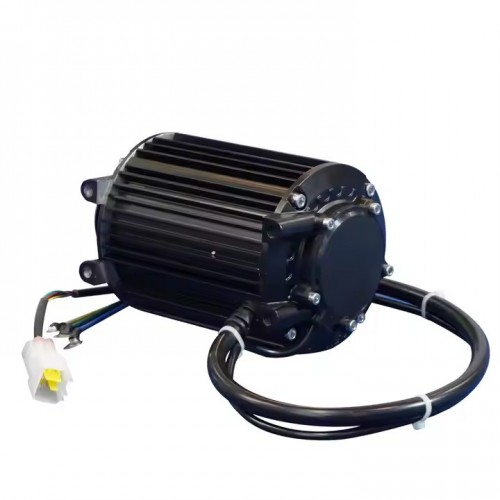

Motor Type: QS90 1000W Mid Drive Motor
Motor Design: PMSM
Matching Tires: 10-17 inch
Magnet Height: 80 hrs
Rated Power: 1000W
Peak Power: 2000W
Rated Voltage: 48v-72v
Speed: 290 rpm @ 72V
Maximum Torque: 22-30 N.m
Cooling Method: Air Cooled
Maximum Efficiency: 90.5%
Thermal Probes : KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 4 mm² section of phase wire (excluding insulation)
Waterproof rating: IP65
Color: Black
N.W./G.W.: 7.8 kg/9.1 kg
Packing size: 34 cm * 33 cm
