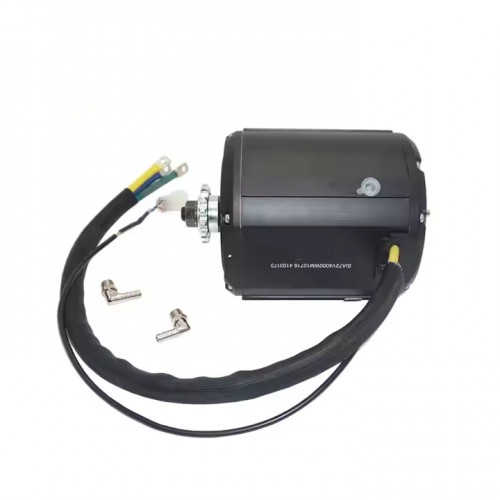

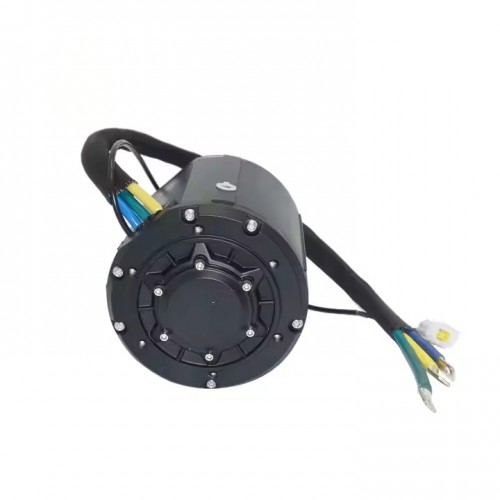

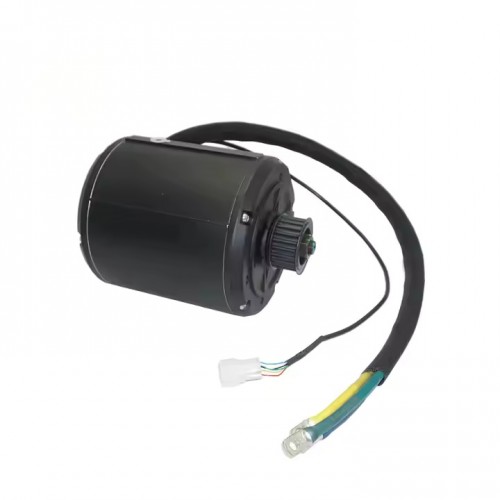

Motor Type: QS138 90H 4KW V1 water-cooled intermediate drive motor
Motor Design: PMSM
Matching Tires: 14 - 19 inches
Magnet Height: 90 hrs
Rated Power: 7500W
Peak Power: 13500W
Rated Voltage: 48v - 96v
Speed: 4000 rpm @ 72V, 6500 rpm with flux reduction
Maximum Torque: 72N.m
Cooling Method. : Water-cooled
Maximum efficiency: 93%
Thermal probe: KTY83 - 122
Operating temperature: 70 - 120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 20 mm² cross-section of phase wires (excluding insulation)
Waterproof rating: IP67
Color: black
N.W./G.W.: 13 kg/14 kg
Packaging Dimensions: 34cm * 33cm
