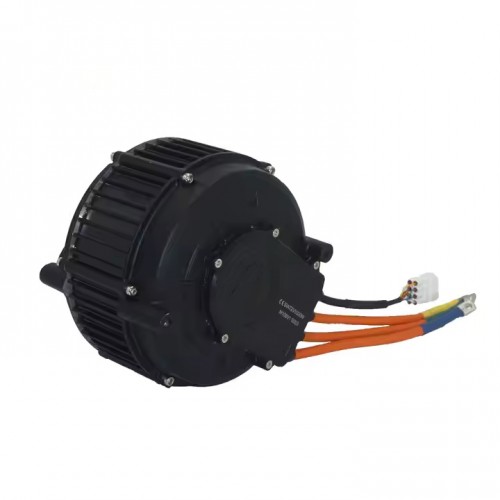

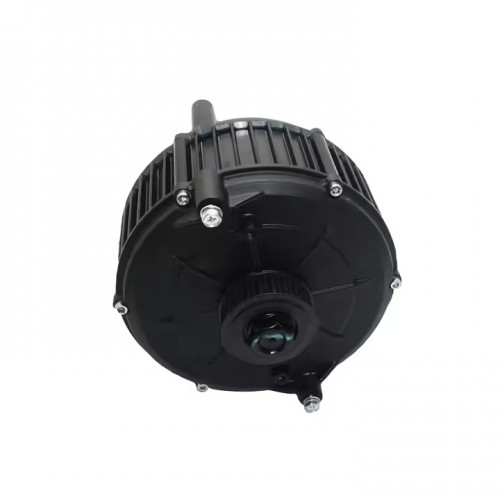

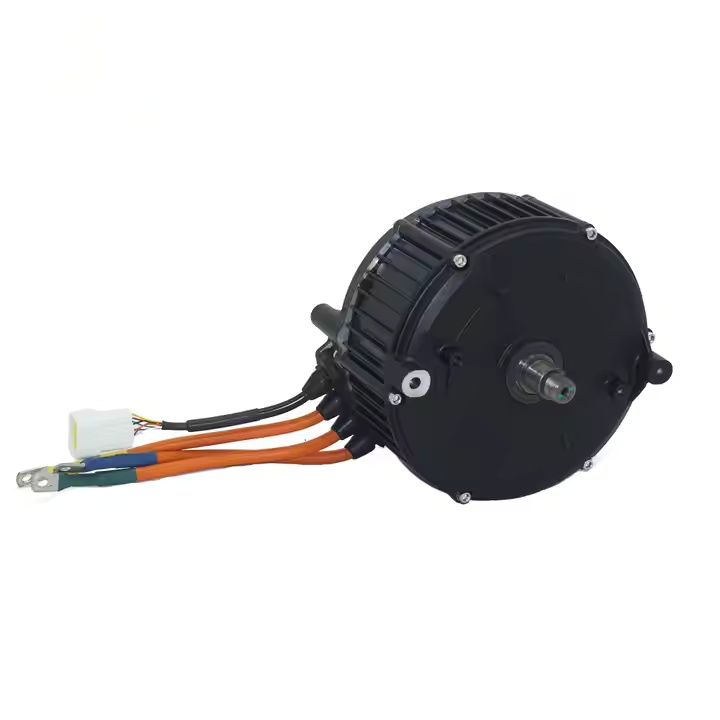

Motor Type: QS165 35H 5KW V2 Mid Drive Motor
Motor Design: PMSM
Sensor: Hall/enorder selectable
Magnet Height: 35 hrs
Rated Power: 5000W
Peak Power: 10000W
Rated Voltage: 48v - 72v
Speed: 5000 - 6500 rpm
Maximum Torque: 43 Newton meters
Maximum DC Current: 180A
Maximum phase current: 500A
Maximum efficiency: 93%
Thermal probe: KTY83 - 122
Operating temperature: 70 - 120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 16 mm² cross section of phase wires (excluding insulation)
Waterproof rating: IP67
Color: Black
N.W./G.W.: 8.4 kg/9.5 kg
Package size: 34 cm * 33 cm
