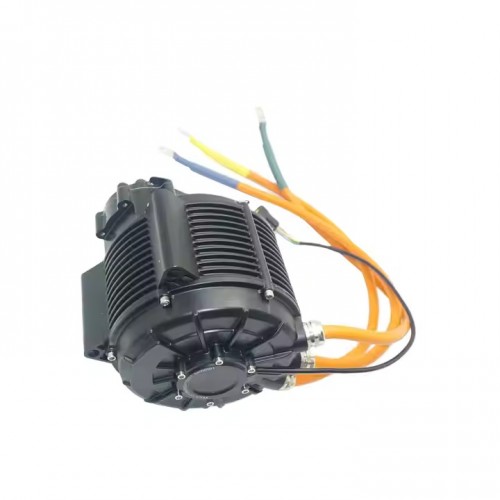

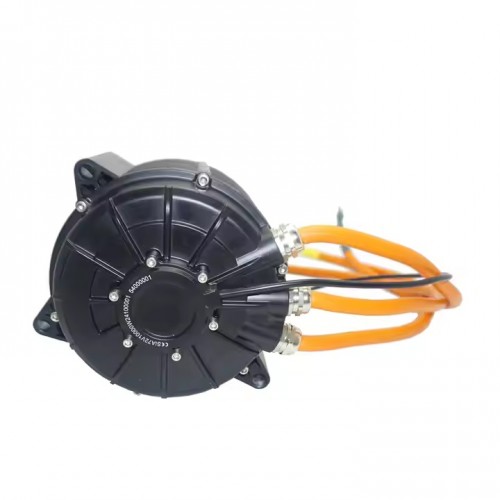

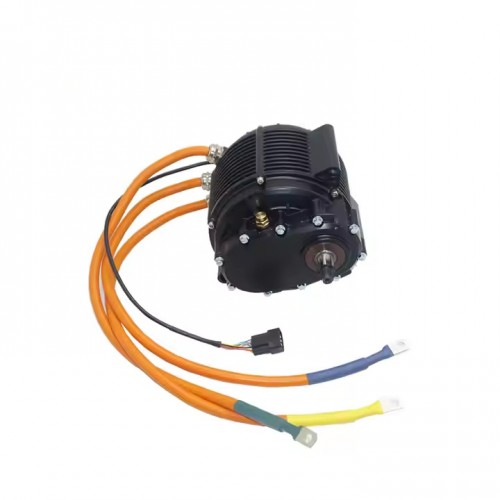

Motor Type: QS165 60H 12KW V3 Mid Drive Motor
Motor Design: PMSM
Sensor: Hall/enorder selectable
Magnet Height: 60 hrs
Rated Power: 12000W, Peak 20,000W
Gear Ratio Current: 1:2.37
Rated Voltage: 48v - 96v
Maximum Speed: 3165 rpm @ 72v output
Maximum Torque. 170N.m output
Maximum DC current: 250A
Maximum phase current: 850A
Maximum efficiency: 94%
Thermal probe: KTY83 - 122
Operating temperature: 70 - 120 °C, 150 °C peak
Hall sensors: 1 set
Phase cables: 35mm² cross section, 750mm length
Waterproofing rating: IP67
Colors: Black N.W./G./G. Black
N.W./G.W.: 15kg/16kg
Packing size: 34cm * 33cm
