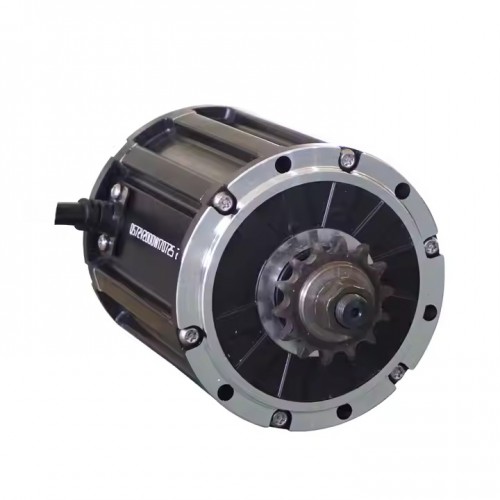

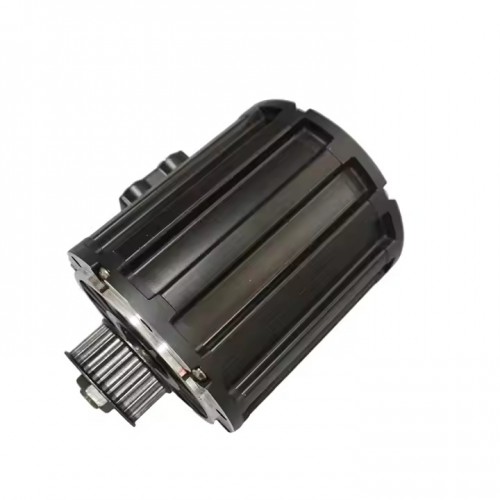

Motor type. QS120 70H 2KW V1 Mid Drive Motor
Motor Design. PMSM
Sensor. Encorder
Magnet Height: 70H
Rated power: 2000W
Rated voltage: 48v-72v
Speed: 2800RPM without Flue weakening, 4400RPM with flux weakening
Max torque. Approx 45.4N.m without Reduction ratio, approx 216.7N.m with 1:4.77 Reduction ratio
Max DC Current: 60A
Max Phase Current: 250A
Max efficiency: 93%
Thermic probe. KTY83-122
Working temperature: 70-120℃, peak 150℃
Hall sensor. 1 set
Phase cable. 8mm² Cross Section of Phase Wire (not include insulation layer)
Waterproof grade: IP67
Color: Black
N.W./G.W.: 10.8kgs/11.5kgs
Packing dimension: 34cm*34cm*33cm
