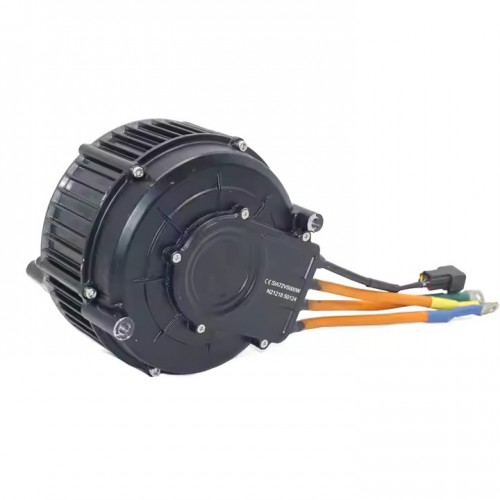

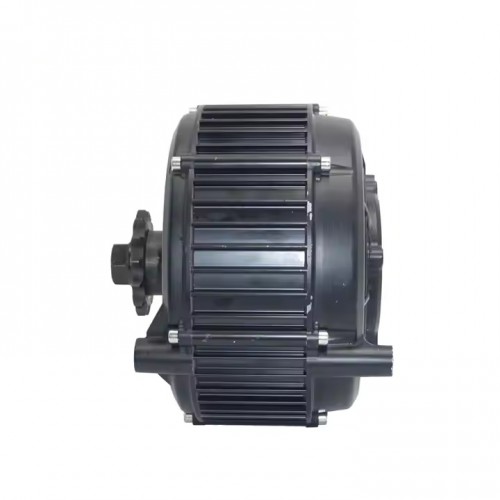

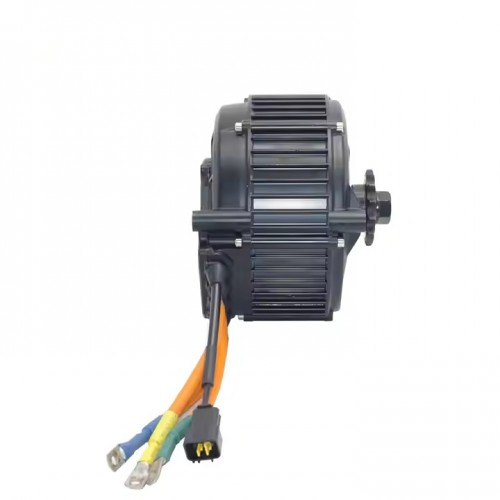

Motor Type: QS165 35H 5KW V2 Mid Drive Motor
Motor Design: PMSM
Sensor: hall/hall selectable
Magnet Height: 35 hrs
Rated Power: 5000W
Peak Power: 10000W
Rated Voltage: 48v-72v
Speed: 5000-6500 rpm
Maximum Torque: 43 Nm
Maximum DC Current: 180A
Maximum Phase Current. 500A
Maximum efficiency: 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensor: 1 set
Phase cable: 16 mm² cross section of phase wires (excluding insulation)
Waterproof rating: IP67
Color: Black
N.W./G.W.: 8.4 kg/9.5 kg
Packing size: 34cm * 33cm
