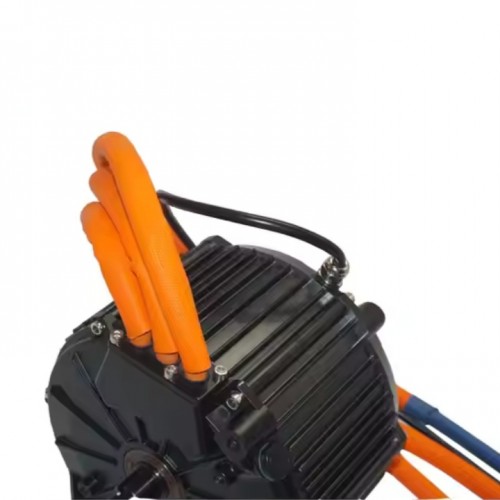

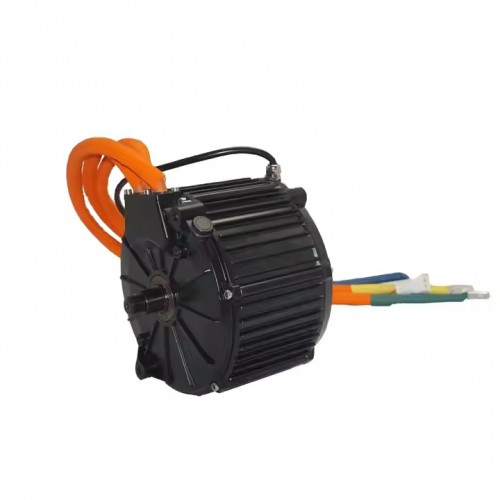

Motor Type: QS165 50H 10KW Intermediate Drive Motor
Motor Design: PMSM
Sensor: Hall/enorder selectable
Magnet Height: 50 hours
Rated Power: 10000W
Peak Power: 20000W
Rated Voltage: 48v-96v
Speed: Rated 6200rpm, Peak 10000W
Max Torque: 73N.m
Max Efficiency. 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 30 mm² cross section of phase wires (excluding insulation)
Waterproof rating: IP67
Colour: black
N.W./G.W.: 11.5 kg/12.5 kg
Packing size: 34 cm * 33 cm
