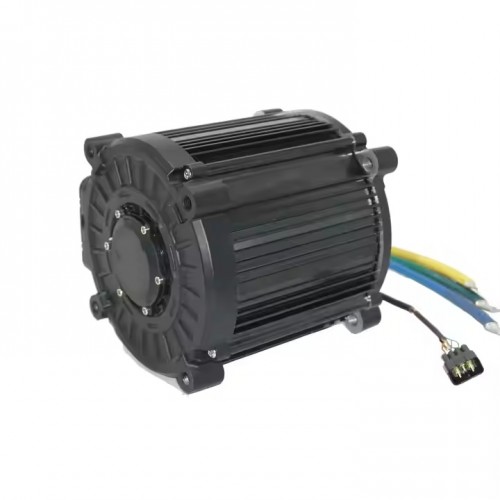

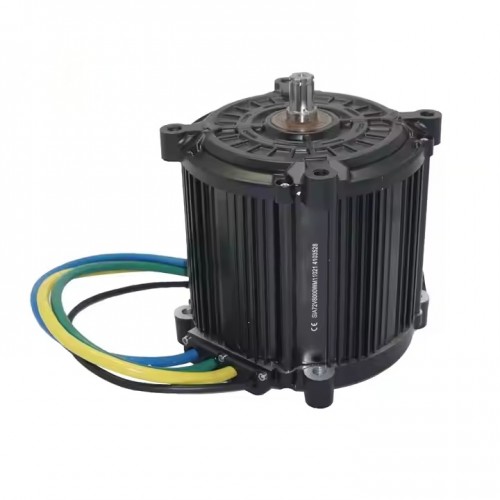

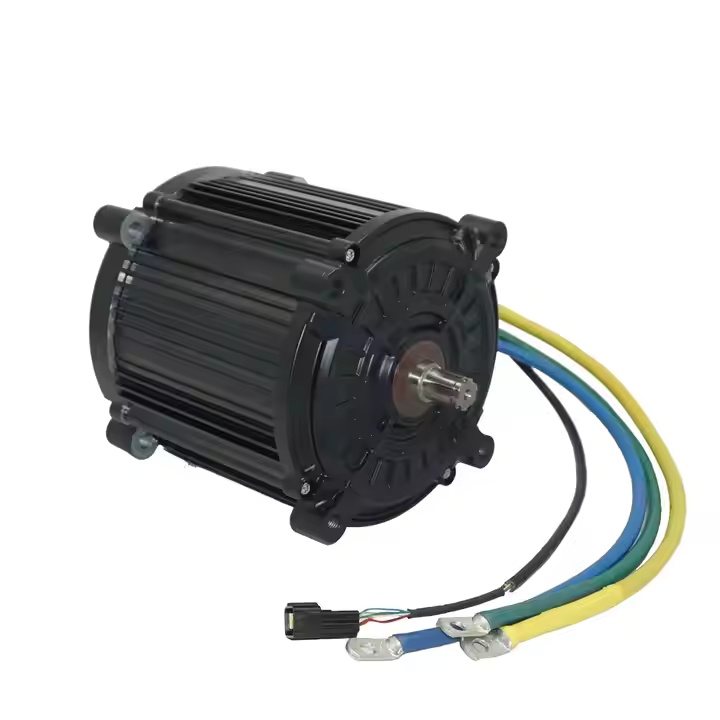

Motor Type: QS180 90H 8KW Intermediate Drive Motor
Motor Design: PMSM
Sensor: Encorder
Magnet Height: 90 hrs
Rated Power: 8000W
Peak Power: 20000W
Rated Voltage: 48v-96v
Speed: 4300-6000 rpm
Maximum Torque: 100 Newton meters
Maximum DC Current: 300A
Maximum Phase Current. 850A
Maximum efficiency: 93%
Thermal probe: PT1000
Operating temperature: 70-120 °C, peak 150 °C
Hall sensor: 1 set
Phase cable: 30 mm² section of phase wire (excluding insulation)
Waterproof rating: IP67
Color: Black
N.W./G.W.: 21.6 kg/22.8 kg
Packing size: 34cm * 33cm
