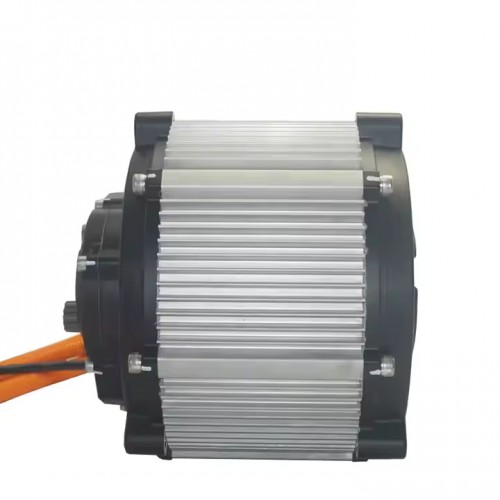

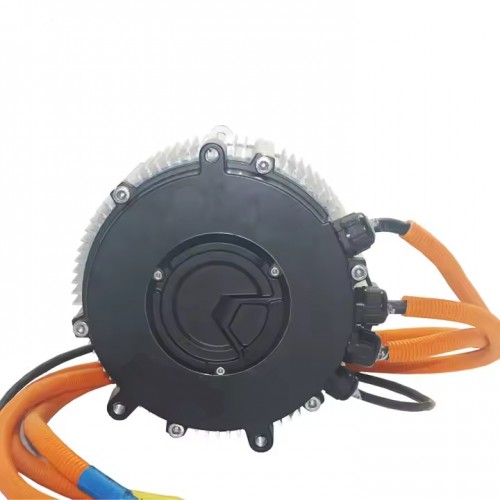

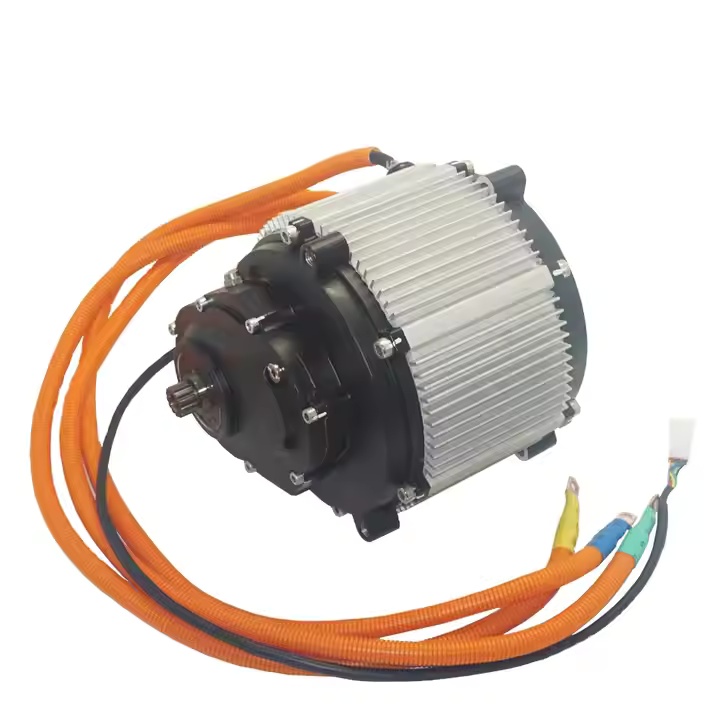

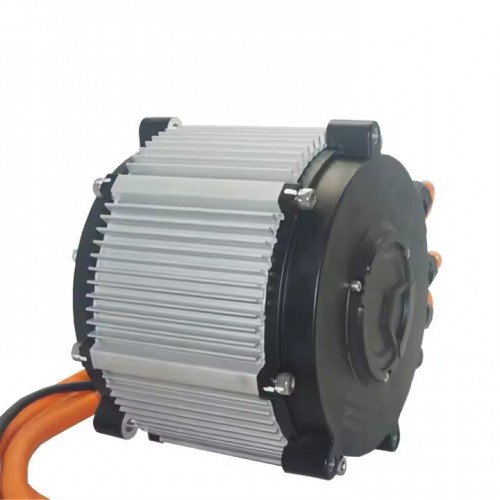

Motor Type: SIA200-50 12KW Intermediate Drive Motor
Motor Design: PMSM
Sensor: Encorder
Magnet Height: 50 hrs
Rated Power: 12000W
Peak Power: 26000W
Rated Voltage: 48v-96v
Speed: Rated 5000rpm, Peak 8000W
Maximum Torque: 92N.m
Maximum Efficiency: ≥93%
Thermal Probe : KTY84-150
Operating System: S9
Insulation Class: F
Phase Cable: 1000v 3 * 25mm²
Water Resistance: IP67
Color: Silver + Black
N.W./G.W.: 22.5kg/23.5kg
Reduction Ratio: 1:2.5
