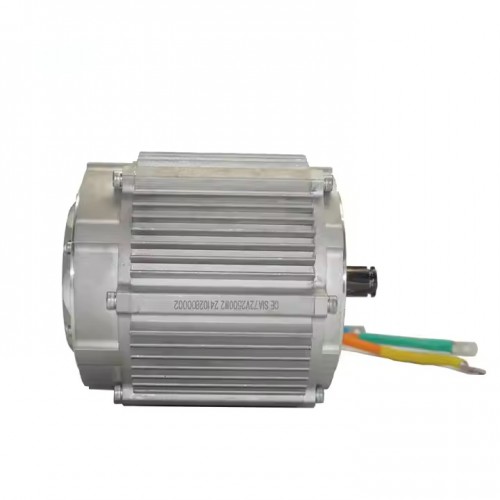

Motor Type: SIA138 60H 2500W Mid Drive Motor
Motor Design: PMSM
Matching Tires: 12-19 inch
Magnet Height: 60 hours
Rated Power: 2500W
Peak Power: 6500W
Rated Voltage: 48v-72v, 72v by default
Speed: 3000 rpm @ 72V, 4500 rpm after weak magnet
Max Torque: 60N.m
Cooling method: air-cooled
Maximum efficiency: >91%
Thermal probe: KTY83-122/KTY84-150
Operating temperature: 70-120 °C, peak 150 °C
Hall sensor: 1 set
Phase cable: 16 mm² cross section of phase wires (excluding insulation)
Waterproof rating: IP67
Colour: Silver
N.W./G.W.: 11kg/ 12.79 kg
Package size: 34 cm * 33 cm
