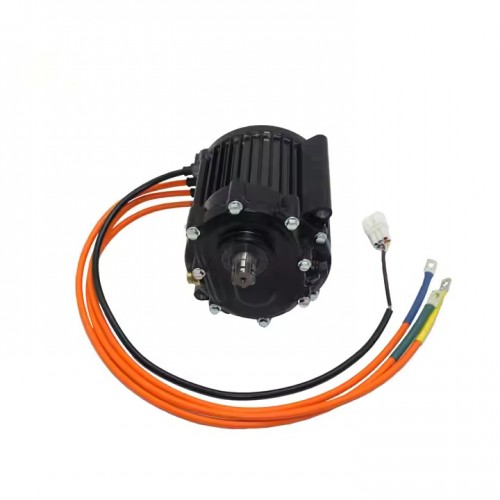

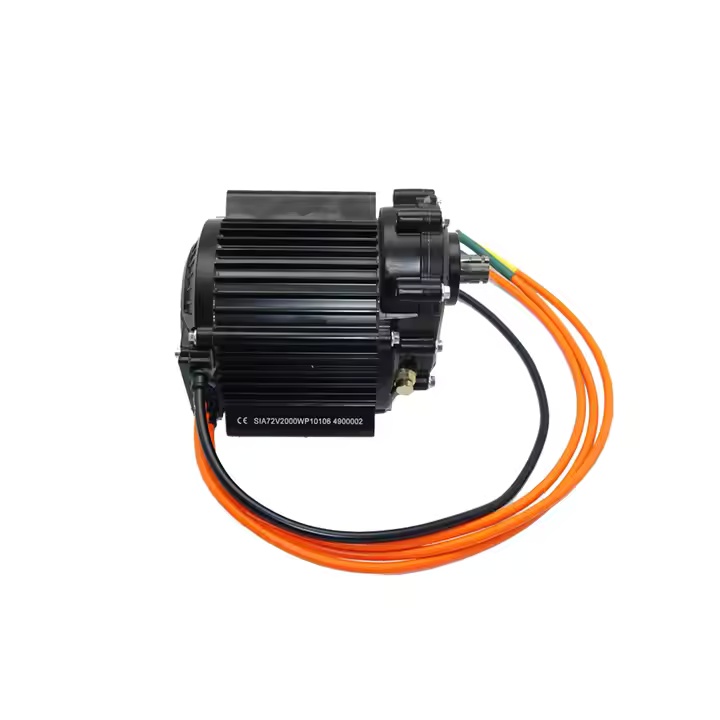

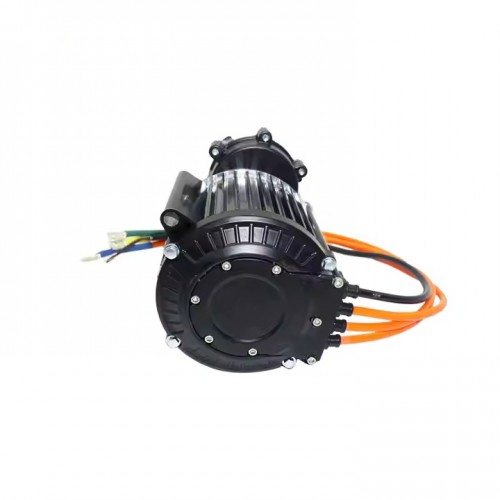

Motor Type: QS120 60H 2KW V3 Mid Drive Motor
Motor Design: PMSM
Matching Tires: 12-19 inch
Magnet Height: 60 hours
Rated Power: 2000W
Peak Power: 5000W
Rated Voltage: 48v-72v
Speed: 3300RPM @ 72v Default (3900rpm @ 72v and 4900rpm @ 72v options)
Maximum torque: 105.7-119.8N.m
Cooling method: air-cooled
Maximum efficiency: 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cables: 8mm² cross section of phase wires (excluding insulation)
Waterproofing rating: IP67
Colour: black
N.W. /G.W.: 8.5 kg
Packing size: 34 cm * 33 cm
