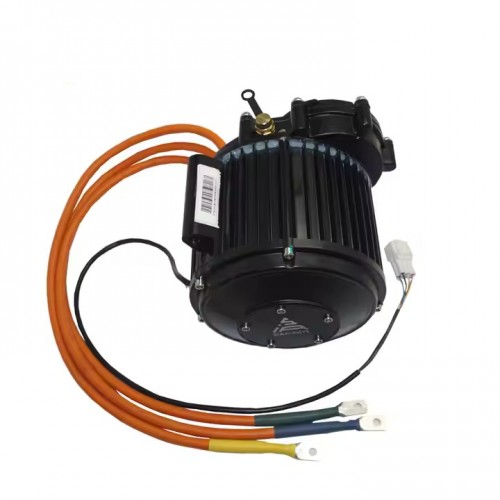

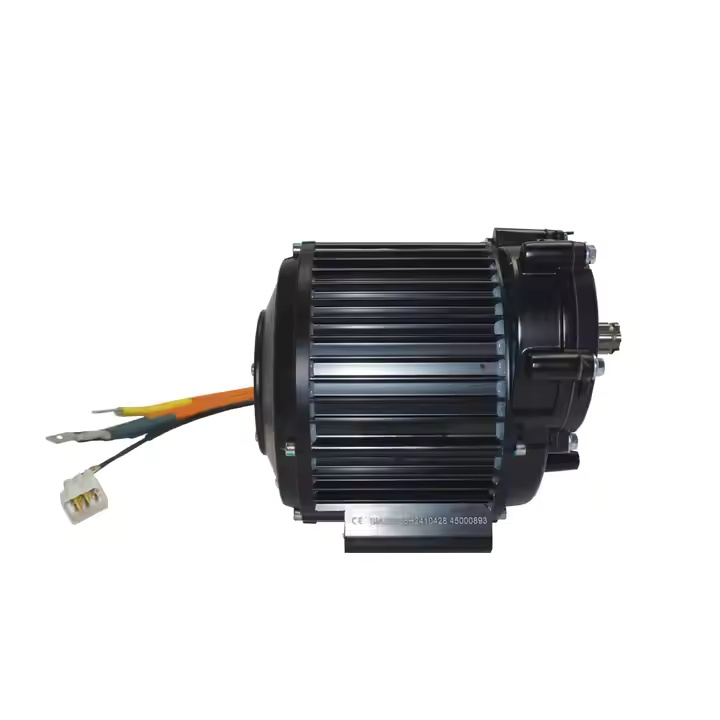

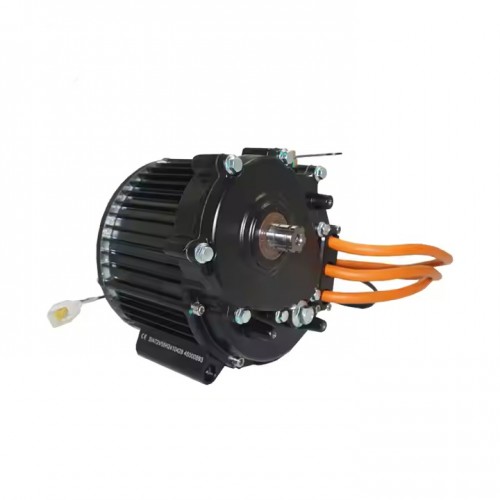

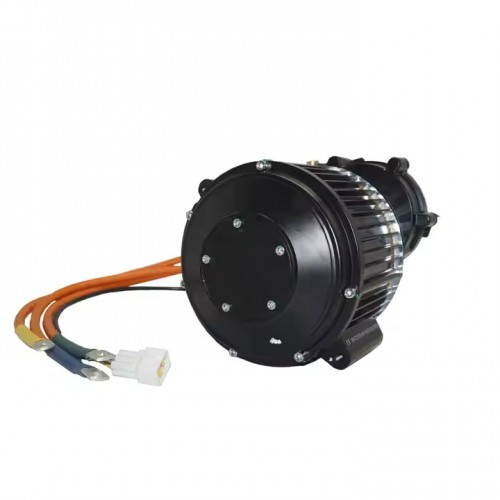

Motor Type: QS138 55H 2.5kw Intermediate Drive Motor
Motor Design: PMSM
Reduction Ratio: 1:2.35
Matching Tires: 12-17 inches
Magnet Height: 55 hrs
Rated Power: 2500W
Rated Voltage: 48v-72v
Speed: 4700RPM (No Load)
Maximum Torque: 50N.m
Cooling Method: Air-Cooled
Maximum Efficiency: 93%
Heat Probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 16 mm² section of phase wire (excluding insulation)
Waterproof rating: IP67
Color: Black
N.W./G.W.: 13 kg/14 kg
Packing size: 34 cm * 33 cm
