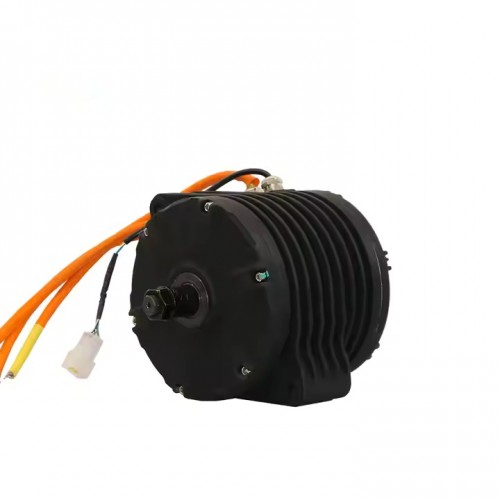

Motor Type: QS138 50H 2KW Intermediate Drive Motor
Motor Design: PMSM
Matching Tires: 12-17 inch
Magnet Height: 50 hrs
Rated Power: 2000W
Peak Power: 4100W
Rated Voltage: 48v-72v
Speed: 2800 rpm @ 72V, 3850 rpm after flux reduction
Max DC Current: 70A
Max Torque: 45- 51N.m
Cooling method: Air-cooled
Maximum efficiency: 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cables: 8 mm² section of phase wires (excluding insulation)
Waterproofing rating: IP67
Colour: Black
N.W./G.W.: 13 kg/14 kg
Packaging Dimensions: 34cm * 33cm
