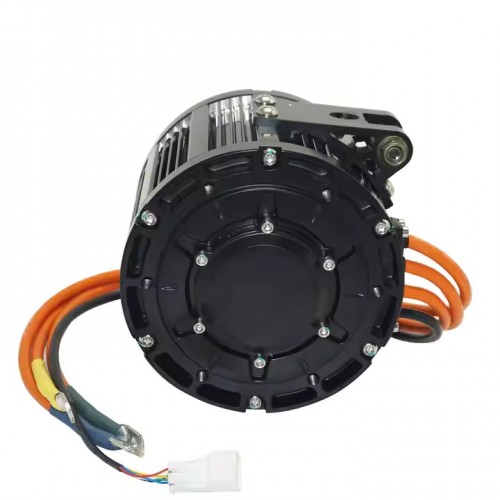

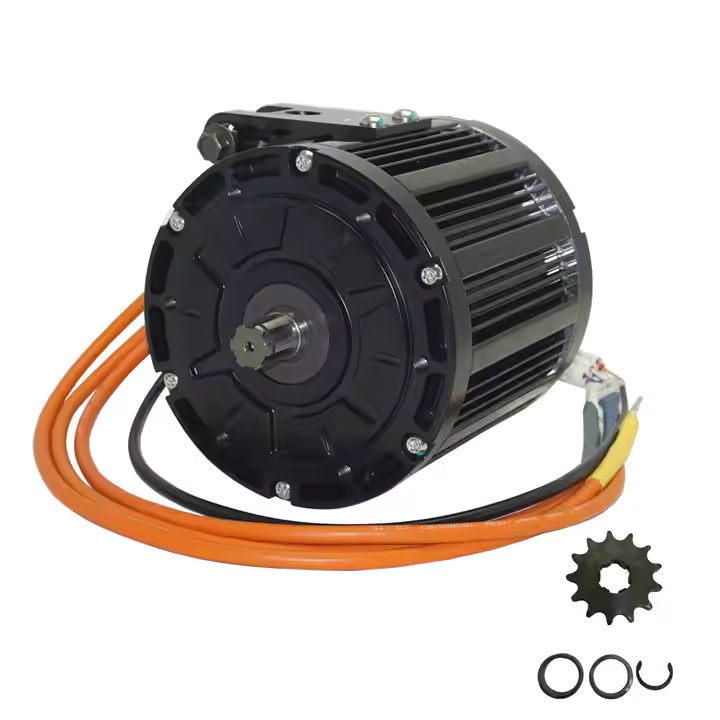

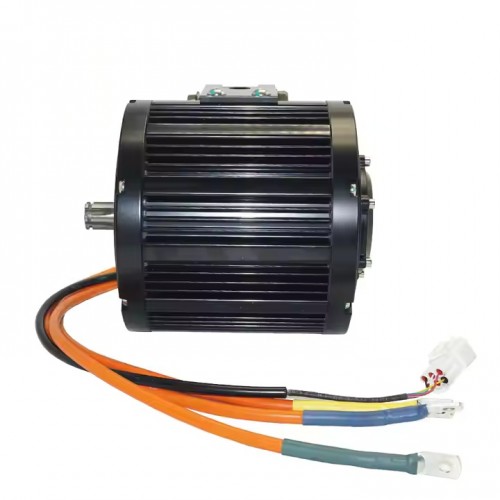

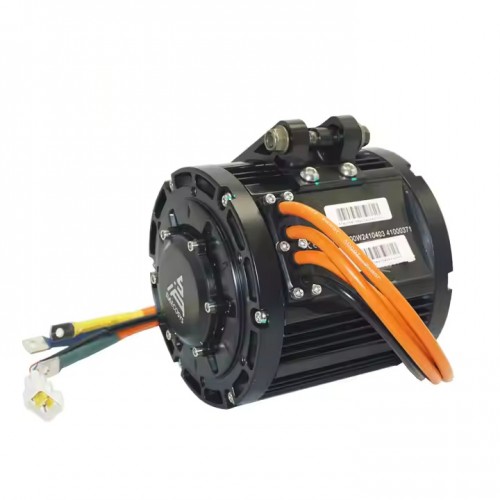

Motor Type: QS138 60H 2.5kw Intermediate Drive Motor
Motor Design: PMSM
Matching Tires: 12-17 inches
Magnet Height: 60 hours
Rated Power: 2500W
RPM: 3000 rpm @ 72v
Rated Voltage: 48v-72v
Speed: Approx. 80km/h
Maximum DC Current: 100A
Maximum Torque: 60N.m
Cooling Method. Air-cooled
Maximum efficiency: 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 16 mm² cross-section of phase wires (excluding insulation)
Waterproof rating: IP67
Colour: black
N.W./G.W.: 8.9 kg/11 kg
Packing size: 34 cm * 33 cm 33cm
