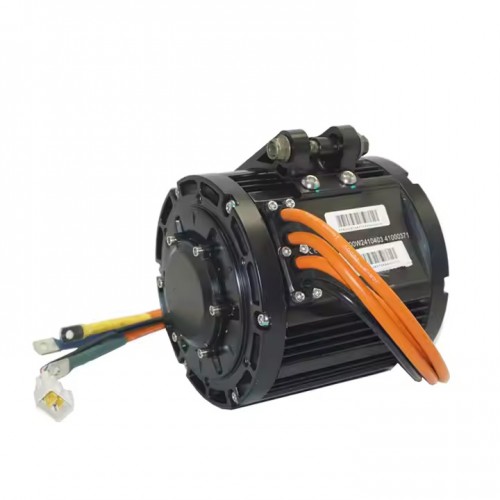

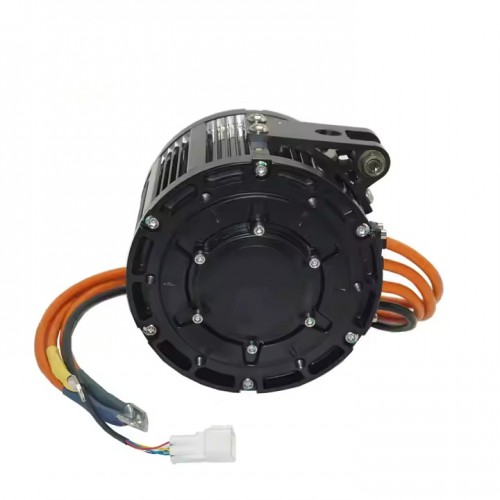

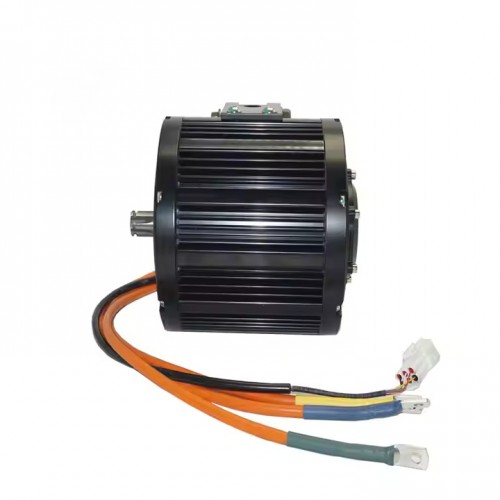

Motor Type: QS138 70H 3KW V1 Mid Drive Motor
Motor Design: PMSM
Matching Tires: 12-19 inch
Magnet Height: 70 hrs
Rated Power: 3000W
Peak Power: 10,000W
Rated Voltage: 48v-96v, 72v by default
Speed: 3800RPM @ 72V, 6,000rpm with flux reduction
Max Torque: 45- 55N.m
Cooling method: Air-cooled
Maximum efficiency: 94%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 16mm² cross section of phase wires (excluding insulation)
Waterproofing rating: IP67
Colour: Black
N.W./G.W.: 11kg/ 12.79 kg
Package size: 34 cm * 33 cm
