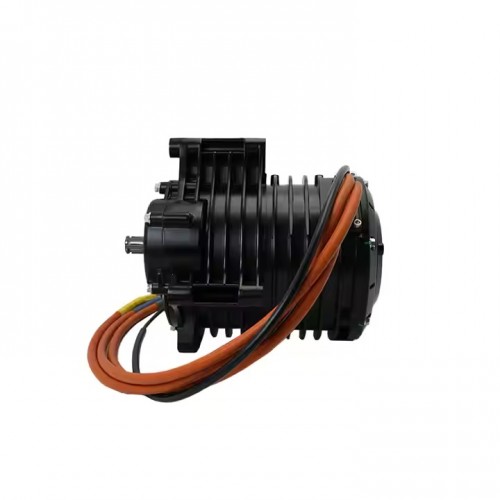

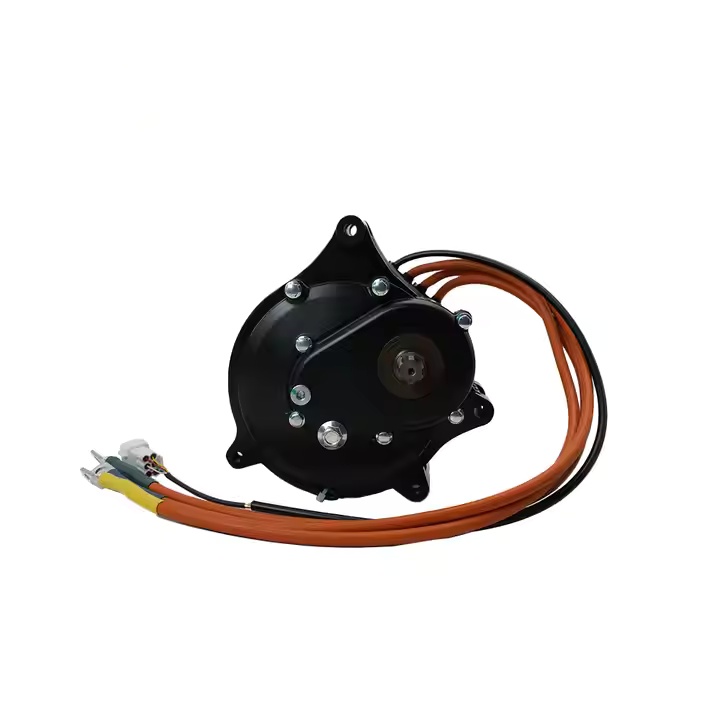

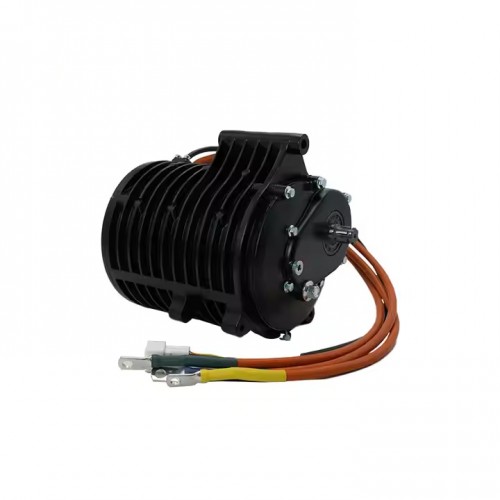

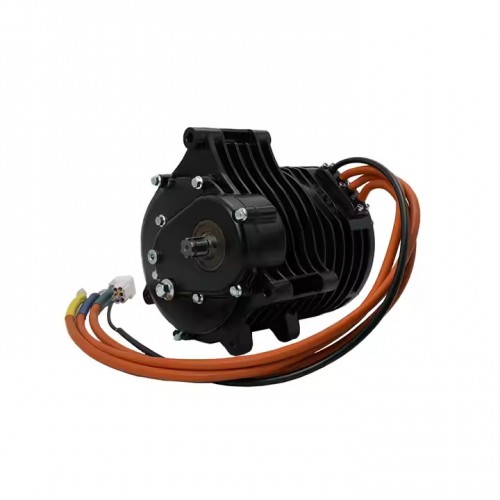

QS138 70H 3000W V3 Center Drive Motor High Torque High Power

2025-07-04 17:0500Inquiry
Price $231.00
Shipping China After payment, 3 days
Rated voltage 48v-96v
Rated Power 3000W
Peak Power 11000W
The inventory of this product is insufficient
Product details

Motor Type: QS138 70H 3KW V3 Mid Drive Motor
Motor Design: PMSM
Matching Tires: 12-19 inch
Magnet Height: 70 hrs
Rated Power: 3000W
Peak Power: 11,000W
Rated Voltage: 48v-96v
Speed: 2955 rpm @ 72V
Maximum Torque: 98 Newton-meters
Cooling Method: Air Cooled
Maximum Efficiency: 93%
Heat Probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 16 mm² section of phase wire (excluding insulation)
Waterproof rating: IP67
Color: black
N.W./G.W.: 12.3 kg/14 kg
Packing size: 34 cm * 33 cm
