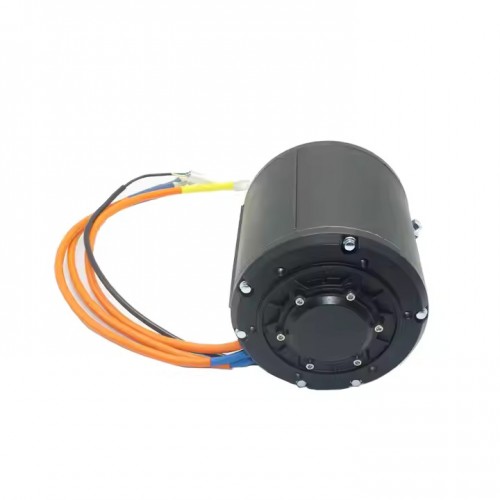

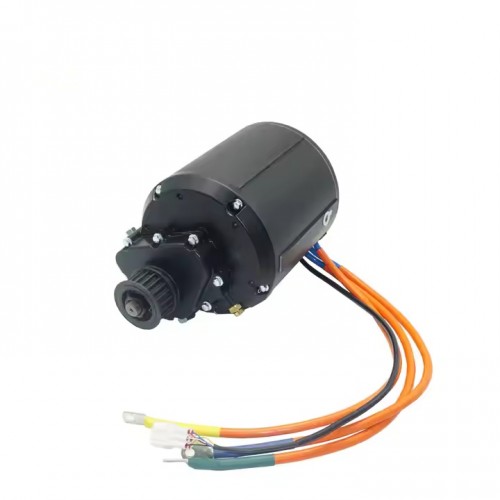

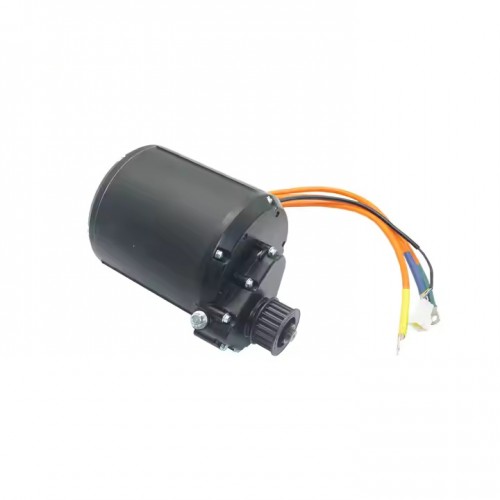

Motor Type: QS138 90H 4KW V3 water-cooled intermediate drive motor
Motor Design: PMSM
Matching Tire: 12-19 inch
Magnet Height: 90 hrs
Rated Power: 4000W
Peak Power: 13.5 kW
Rated Voltage: 48v-96v
Speed: 4100 rpm @ 72V, 7000 rpm (flux weakened)
Maximum Torque: 120 Newton-meters
Cooling Method: water-cooled
Maximum efficiency: 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cable: 20 mm² cross-section of phase wires (excluding insulation)
Waterproof rating: IP67
Colour: black
N.W./G.W.: 15.6 kg/16 kg
Packing size: 34 cm * 33 cm
