Application

Precision drives in medical equipment, industrial automation fields.

Options:Lead wires length,Shaft length,Special coils,Gearheads, Bearing type ,Hall sensor,Encoder,Driver

Parameter

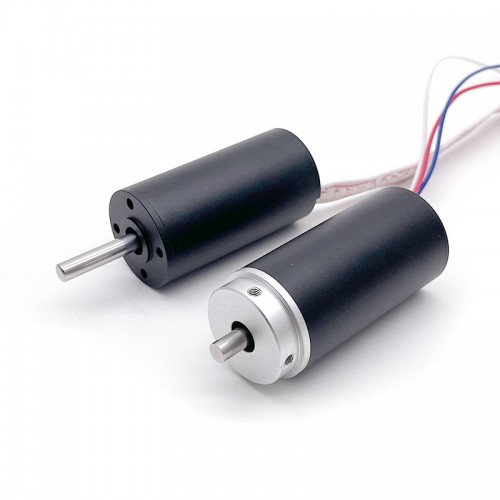

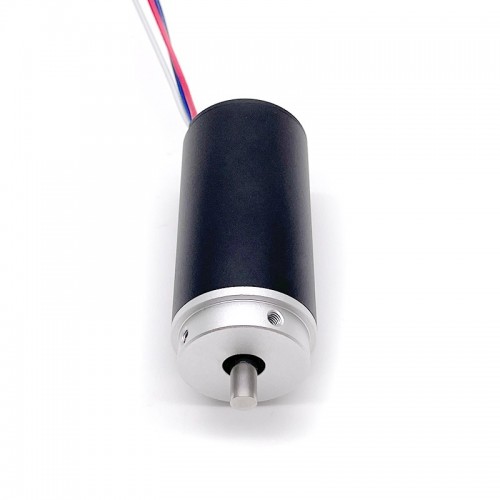

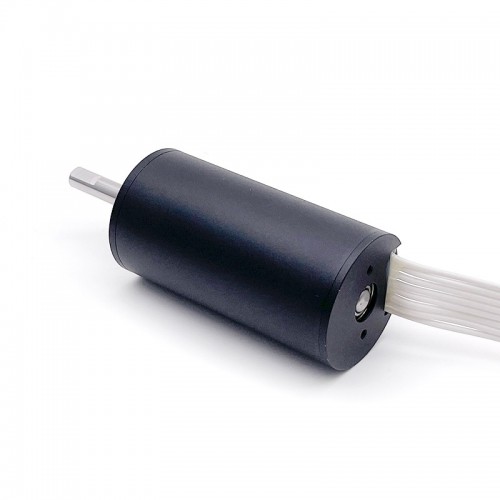

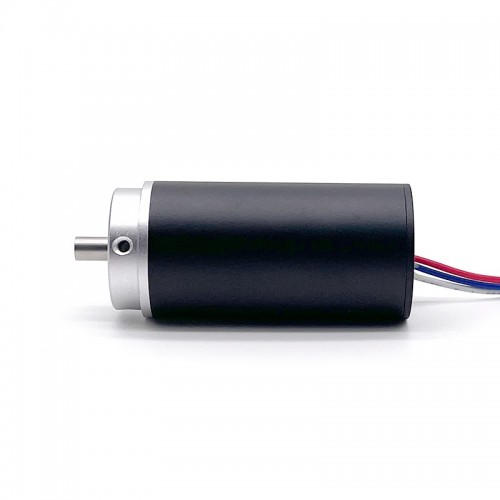

Advantages of TBC series dc coreless brushless motors

1. The characteristic curve is flat, and it can operate normally at all speeds under load rating conditions.

2. Due to the usage of a permanent magnet rotor, the power density is high while the volume is modest.

3. Low inertia and improved dynamic qualities

4. Grade, no special starting circuit

A controller is always required to keep the motor going. You may also use this controller to control the speed.

6. The frequency of stator and rotor magnetic fields is equivalent

Using precious metal brushes, high performance Nd-Fe-B magnet, tiny gauge high strength enamelled winding wire, the motor is a compact, light weight precision product. This high efficiency motor has a low starting voltage and a low power consumption.
