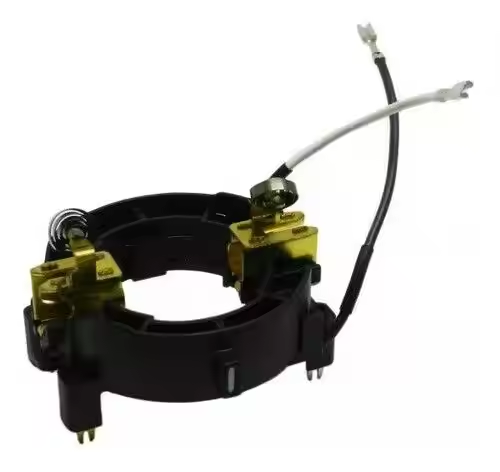

Power Tool Parts: Carbon Brush Holder Unit 638655-7 – Compatible with HR2300, HR2600, HR2601, HR2610

1. Product Identification

• Component Type: Carbon brush holder unit (an integrated assembly that houses and secures carbon brushes in a power tool’s motor).

• Part Number: 638655-7 (a unique identifier for inventory and compatibility verification).

• Application: Replacement part for rotary hammers (heavy-duty drilling/breaking tools) and similar power tools.

2. Compatibility Details

• Target Models: Specifically designed for rotary hammer models:

• HR2300

• HR2600

• HR2601

• HR2610

• Brand Context: These model numbers align with common naming conventions of brands like Bosch, indicating the holder is likely a replacement part for their rotary hammer lines.

3. Core Function

• Housing & Positioning: Serves as a protective casing for carbon brushes, ensuring they align precisely with the motor’s commutator. This alignment is critical for stable electrical contact during high-vibration operation (typical of rotary hammers).

• Pressure Regulation: Integrates springs to maintain consistent pressure (2.0–2.5kg) between brushes and commutator, compensating for brush wear and preventing excessive sparking.

• Electrical Insulation: Made from insulating materials to prevent short circuits between the brush assembly and the tool’s metal motor housing.

4. Key Features

• Material: Heat-resistant, glass fiber-reinforced plastic (e.g., PA6+GF) to withstand motor temperatures up to 130°C and resist deformation from vibration.

• Design: Custom-fit to the motor housing of HR2300/HR2600/HR2601/HR2610, with precise mounting points and brush slots matching the tools’ original specifications.

• Durability: Engineered to endure the intense impact and vibration of rotary hammer operation, reducing the risk of cracks or breakage.

5. Replacement Indicators

• Physical damage (cracks, warping, or broken mounting tabs) that compromises brush stability.

• Spring failure (loss of tension) leading to poor brush-commutator contact, resulting in weak performance, sparking, or motor stalling.

• Wear or corrosion on internal surfaces that affects brush movement.

6. Installation & Maintenance

• Must be securely fastened to the motor housing to withstand the tool’s high-impact operation.

• When replacing, ensure the new unit’s spring tension matches OEM specifications (2.0–2.5kg) to avoid uneven wear.

• Should be replaced alongside worn carbon brushes to ensure optimal performance and longevity.

7. Importance in Tool Performance

• Enables reliable current transmission, directly impacting the rotary hammer’s drilling/breaking power.

• Protects critical motor components (commutator, rotor) from damage caused by misaligned or loose brushes.

• Ensures safe operation by minimizing sparking and overheating risks.
