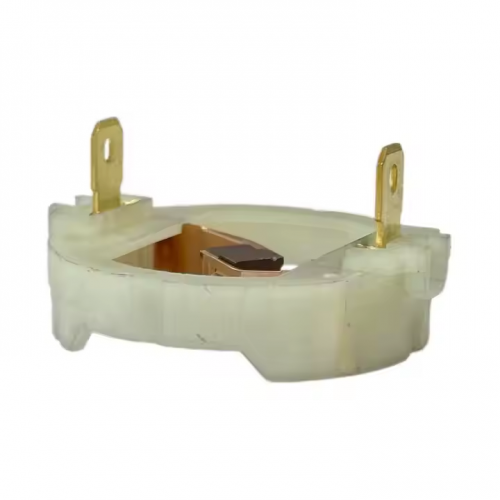

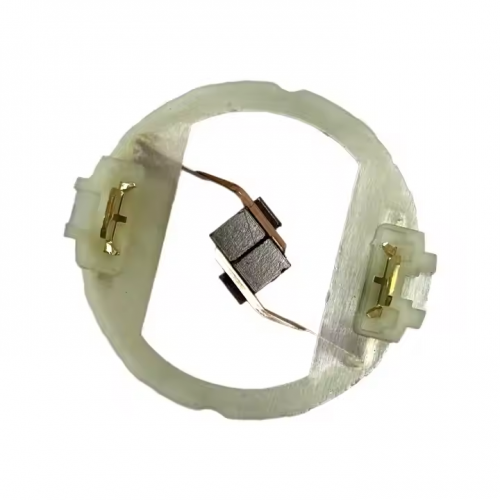

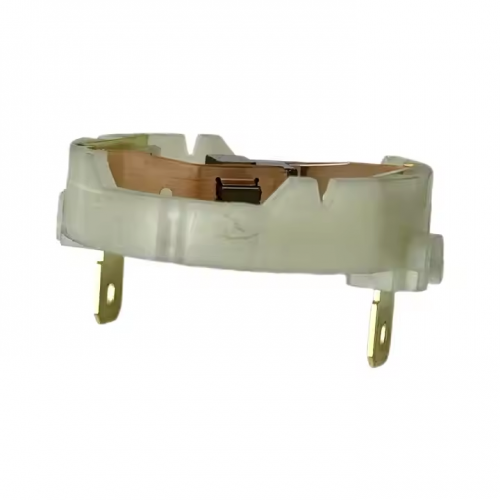

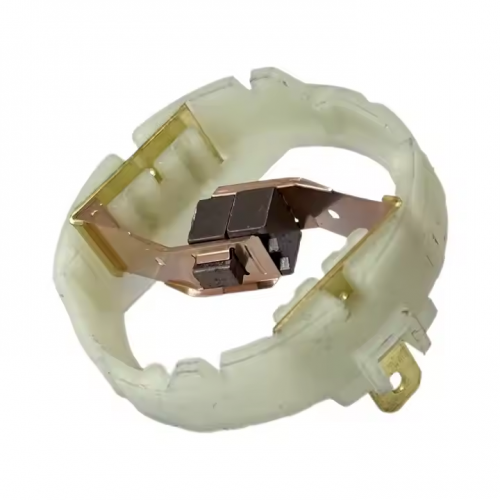

Replacement Parts: 895, 875, 887 Motor Carbon Brush Holder for Cordless Screwdrivers, Wrenches, and Drills

1. Product Identification

• Part Type: Motor carbon brush holder (a component that houses and secures carbon brushes in the motor).

• Model Numbers: 895, 875, 887 (likely unique identifiers for specific holder designs or compatible tool series).

• Application: Replacement part for cordless power tools, including screwdrivers, wrenches, and drills.

2. Core Function

• Holds & Aligns Brushes: Secures carbon brushes in precise position within the tool’s motor, ensuring consistent contact with the commutator (critical for electrical current transmission).

• Maintains Pressure: Integrates springs to apply steady pressure (1.2–1.8kg) on brushes, compensating for wear and preventing sparking—even under the vibration of cordless tool operation.

• Insulates & Protects: Acts as an insulating barrier between the conductive brushes and the tool’s metal motor housing, reducing short-circuit risks.

3. Compatible Tools

• Designed for cordless (battery-powered) tools such as:

• Cordless screwdrivers (low-torque, precision applications).

• Cordless wrenches (high-torque, for fastening/loosening bolts).

• Cordless drills (versatile for drilling and driving).

• The model numbers (895, 875, 887) indicate compatibility with specific tool series—verify with your tool’s brand and model to ensure fit.

4. Key Features

• Material: Lightweight, heat-resistant plastic (e.g., ABS or nylon with glass fiber reinforcement) to withstand battery motor temperatures (up to 100°C) and resist impact from tool use.

• Design: Compact to fit the smaller motor housings of cordless tools, with precise slots for brush insertion and secure mounting points.

• Durability: Engineered to handle the repetitive motion and vibration of screwdriving, wrenching, or drilling without cracking or losing structural integrity.

5. Replacement Indicators

• Physical damage (cracks, broken tabs, or warping) that disrupts brush alignment.

• Spring failure (loss of tension) leading to poor brush-commutator contact, resulting in weak tool performance, intermittent operation, or sparking.

• Wear or corrosion on internal surfaces that hinders smooth brush movement.

6. Installation Notes

• Must be compatible with the tool’s motor size and brush dimensions to ensure proper fit.

• When replacing, check that the new holder’s spring tension matches the original (1.2–1.8kg) to avoid uneven commutator wear.

• Should be replaced alongside worn carbon brushes for optimal motor performance.

7. Importance in Cordless Tools

• Enables reliable current flow from the battery to the motor, directly impacting tool power (torque, speed).

• Protects sensitive battery motor components (commutator, rotor) from damage due to misaligned brushes.

• Ensures consistent operation in cordless tools, where efficient power transfer is critical for battery life.
