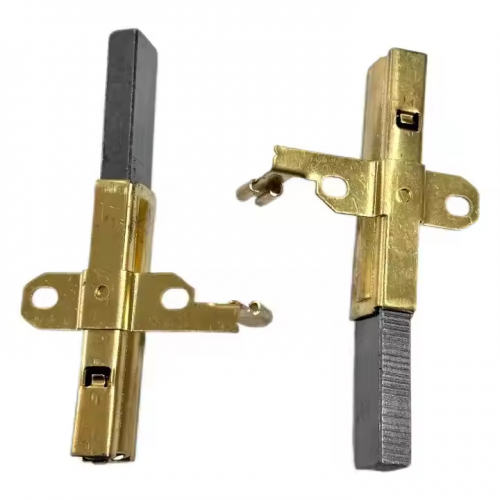

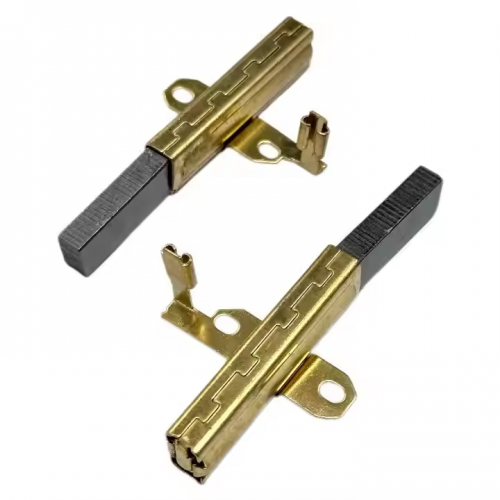

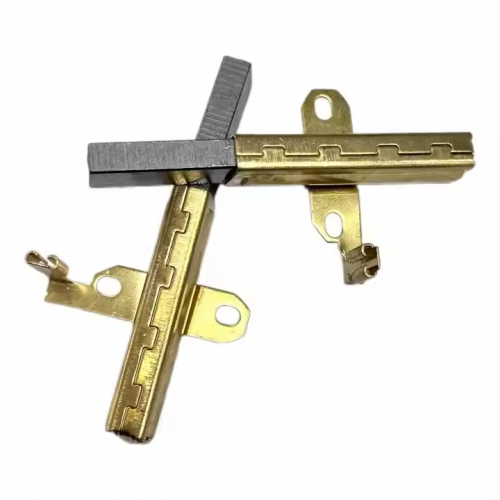

6.1×11×32 MM Household Appliances Parts: Vacuum Cleaner Motor Carbon Brush Holder

This refers to a carbon brush holder designed as a replacement part for vacuum cleaner motors, with specific dimensions of 6.1mm × 11mm × 32mm.

Key Details:

• Type: Carbon brush holder (a component that houses and secures carbon brushes within the motor).

• Dimensions: 6.1mm (thickness) × 11mm (width) × 32mm (length) — precise sizing ensures it fits the motor structure of compatible vacuum cleaners.

• Application: A critical part for household vacuum cleaner motors, responsible for holding carbon brushes in proper alignment with the motor’s commutator.

Core Function:

• Stabilizes Carbon Brushes: Keeps the carbon brushes firmly positioned to maintain consistent contact with the motor’s commutator, ensuring smooth electrical current transmission.

• Guides Brush Movement: Allows the brushes to wear evenly while maintaining pressure (via built-in springs) against the commutator during motor operation.

• Protects Motor Components: Acts as an insulating barrier between the conductive brushes and the motor’s metal housing, reducing the risk of short circuits.

Compatibility:

Designed for household vacuum cleaners with motors that require a brush holder of 6.1×11×32mm dimensions. It works with the corresponding carbon brushes (matching the same size) to ensure the motor functions reliably.

Replacement Need:

• Physical damage (cracks, broken tabs) that misaligns the brushes.

• Spring failure (loss of tension) leading to poor brush-commutator contact, causing the vacuum to lose suction, operate intermittently, or produce excessive noise.

Replacing a worn or damaged holder restores proper brush alignment, ensuring efficient motor performance and extending the vacuum cleaner’s lifespan.
