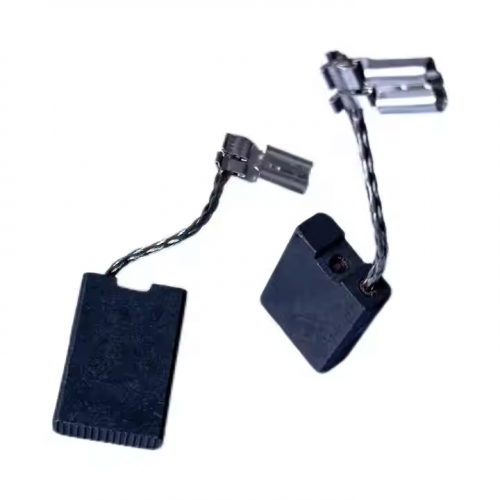

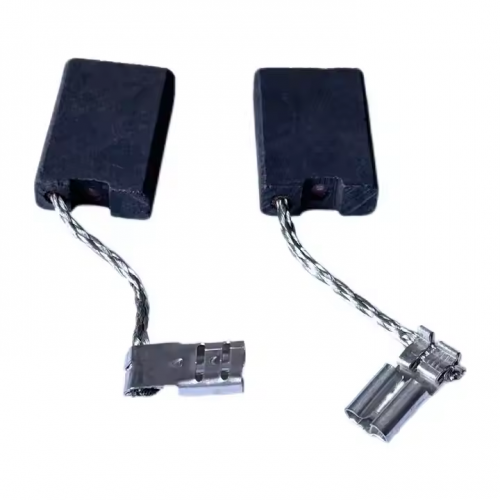

316046780 Carbon Brush Set for W24-230, W24-180 Angle Grinder (34TE33, 34TE34)

This is a carbon brush set with the part number 316046780, specifically designed for W24-230 and W24-180 angle grinders, and also compatible with 34TE33 and 34TE34 motors. It is a core consumable component in the motors of these power tools.

Key Information Breakdown:

1. Product Type: Carbon Brush Set
   Typically includes 2 carbon brushes (most angle grinder motors use them in pairs), made of conductive materials like graphite. Their function is to conduct electrical current to the rotor through contact with the motor commutator, driving the motor to operate and enabling the angle grinder’s cutting, grinding, and other functions.

2. Compatibility Details:

• W24-230, W24-180: These are model numbers of two angle grinders. The numbers "230" and "180" usually refer to the diameter of the grinding wheel (in mm), with the W24-230 suitable for large-scale cutting with 230mm wheels and the W24-180 for medium-heavy duty work with 180mm wheels. They are commonly used in industrial settings (e.g., metal processing, steel structure grinding).

• 34TE33, 34TE34: Likely the model numbers of the motors installed in the aforementioned angle grinders. The carbon brush set must perfectly match the motor’s brush holder size and current specifications.

3. Part Number: 316046780
   This number identifies the specifications of the carbon brushes (size, material performance, etc.), ensuring consistency with original parts and preventing poor contact or motor damage due to mismatched models.

4. Replacement Requirements and Notes:

• Carbon brushes are consumables and should be replaced when worn down to half their original length (approximately 5–8mm).

• If the angle grinder produces excessive sparking, loses power, or makes abnormal noise, it may indicate worn brushes or poor contact—prompt inspection and replacement are necessary.

• When replacing, always replace both brushes as a pair and clean dust from the brush holder to ensure proper motor heat dissipation and conductivity.

In summary, this is a dedicated carbon brush set for W24 series angle grinders and 34TE33/34TE34 motors, an essential accessory for maintaining stable tool operation and extending motor lifespan.
