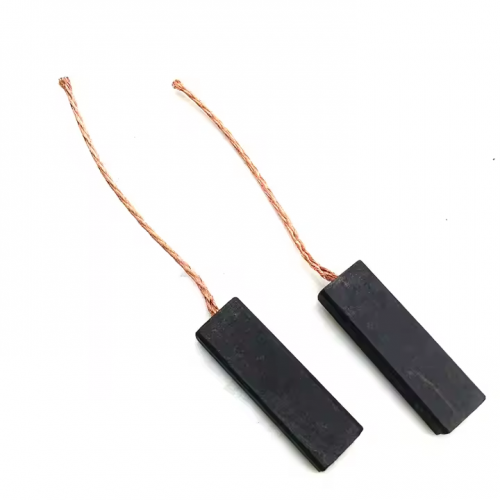

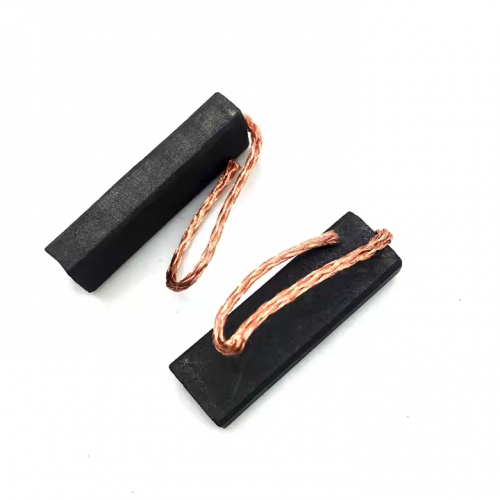

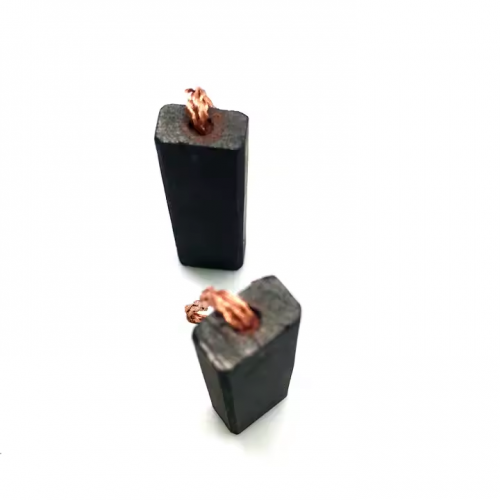

This is a carbon brush accessory designed for washing machines, model AGD 057G, categorized as a power tool spare part. It is a key consumable component in the washing machine’s motor system.
Product Type: Carbon Brush
Made by pressing a mixture of graphite and copper powder, it conducts electrical current to the rotor windings through sliding contact with the motor commutator, driving the rotation of the washing machine’s inner drum. It features self-lubricating properties, reducing frictional wear and extending the motor’s service life.
Compatibility Range:
Washing Machine Model: Specifically designed for certain AGD brand washing machine models (such as some front-loading or top-loading types).
Compatibility Note: It is necessary to confirm that the original carbon brush model is AGD 057G or that the motor specifications match (usually applicable to washing machine motors with a power range of 1200-1800W).
Technical Specifications:
Dimensions: Standard size is 6×8×14mm (length × width × height), with details subject to the product manual.
Current Capacity: Rated current 10A, with a voltage resistance of 250VAC.
Service Life: Approximately 3-5 years under normal washing frequency (depending on usage intensity).
Replacement Indicators:
When the carbon brush is worn down to less than half of its original length (about 7mm);
When the washing machine makes abnormal noises or vibrations intensify during operation;
When obvious sparks or a burning smell appear near the motor.
Disconnect the power supply before replacement to ensure safe operation;
Clean the carbon deposits on the commutator surface and use compressed air to remove debris;
It is recommended to replace both carbon brushes on both sides simultaneously to avoid motor failures caused by uneven wear.
This carbon brush complies with the International Electrotechnical Commission (IEC) 60335 safety standards, ensuring electrical compatibility and mechanical stability with the washing machine motor.
