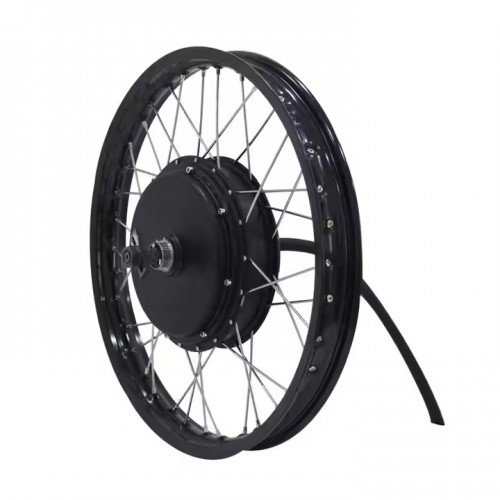

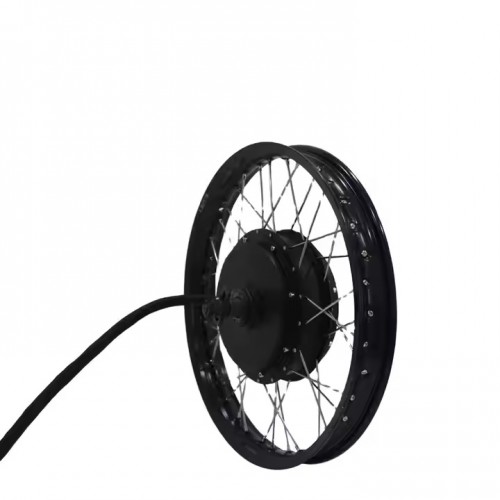

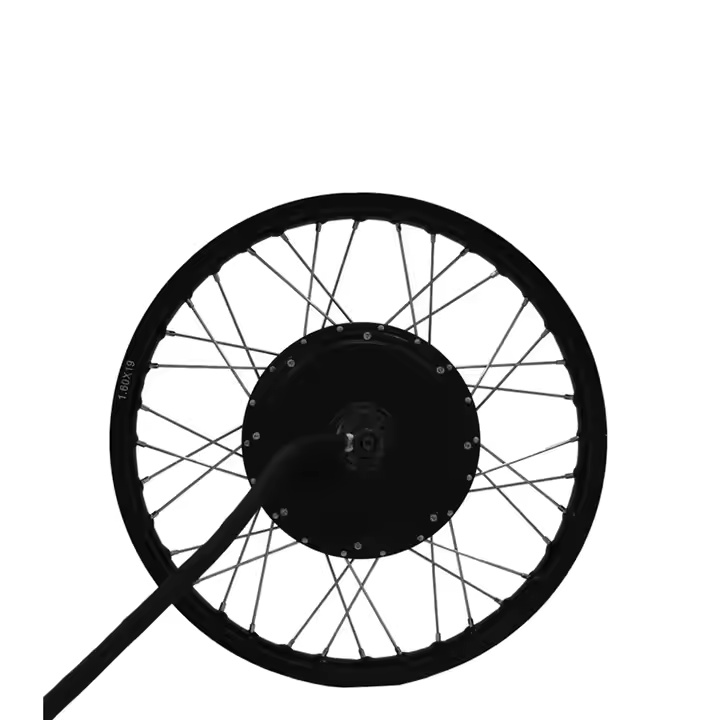

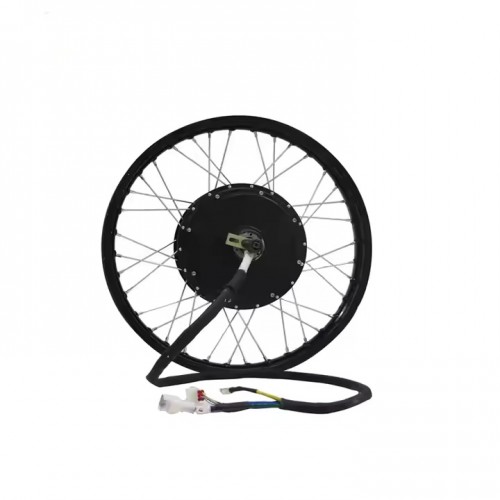

Motor Type: BLDC Hub Motor
Motor Design: Twin Shaft
Magnet Height: 50mm, 16 pole pairs
Rated Power: 3000W
Peak Power: 6000W peak in a few seconds
Rated Voltage: 72 Volts
Speed: 650/820/1175 RPM selectable
Maximum Torque: 181 Nm
Cooling Method: Air Cooled
Maximum Efficiency: ≥ 91%
Thermal Probe: KTY83/122
Operating temperature: 70 - 120°C, peak150°C
Hall sensors: Dual Hall kit with waterproof connector
Phase cable: 10 mm² cross section (excluding insulation)
Waterproof rating: IP66
N.W./G.W.: approx. 14.2 kg
Packing dimensions: 34 cm * 44 cm per piece
