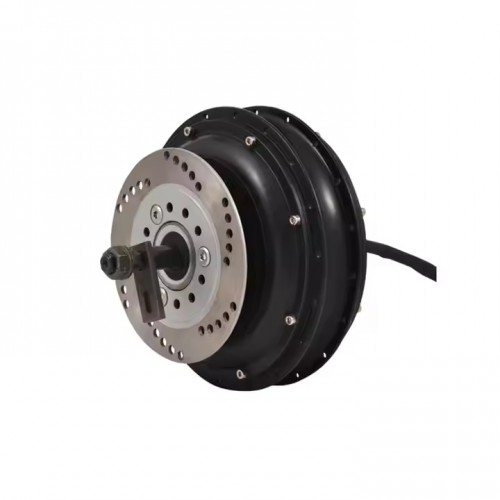

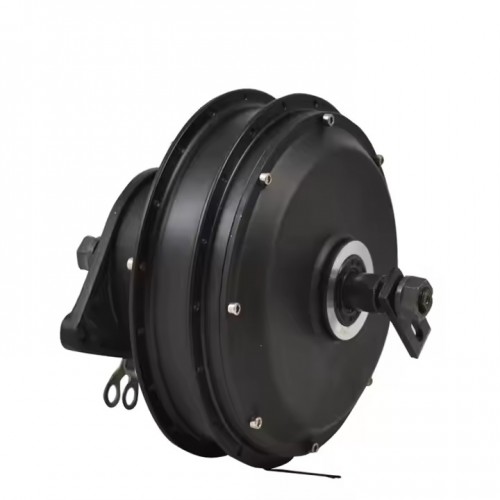

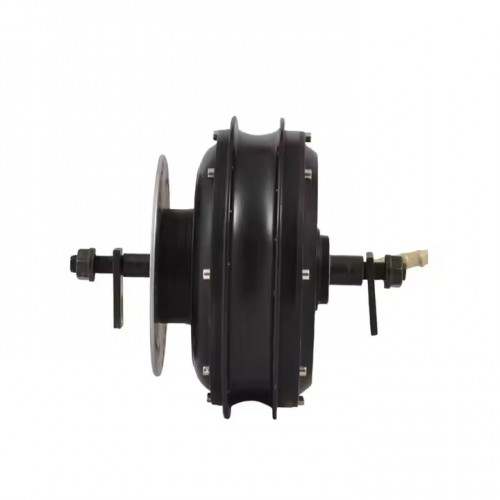

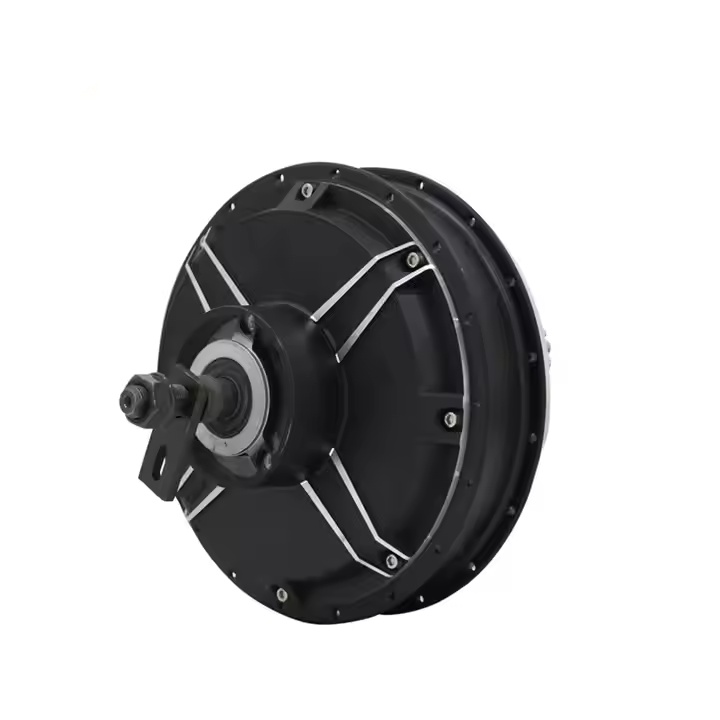

Motor type: BLDC hub motor
Motor design: dual axle no moped rims (integrated), 36 spoke holes, 4.2mm OD
Color: black
Magnet height: 50mm, 16 pole pairs
Rated power: 3000W
Peak power: 6000W peak in a few seconds
Rated voltage: 48v - 72v by default, 72v
Speed: 24kph - 100kph, customized for 72V 80KPH
Maximum torque: 181 Nm
Maximum efficiency: ≥ 91%
Cooling method: air-cooled
Thermal probe: KTY83/122
Operating temperature: 70 - 120°C, peak150°C
Hall sensors: Dual Hall kit with waterproof connectors
Phase cable: 10 mm² cross section (excluding insulation)
Waterproof rating: IP66
N. W./G.W.: approx. 14.5 kg
Packing size: 34 cm * 44 cm per piece
