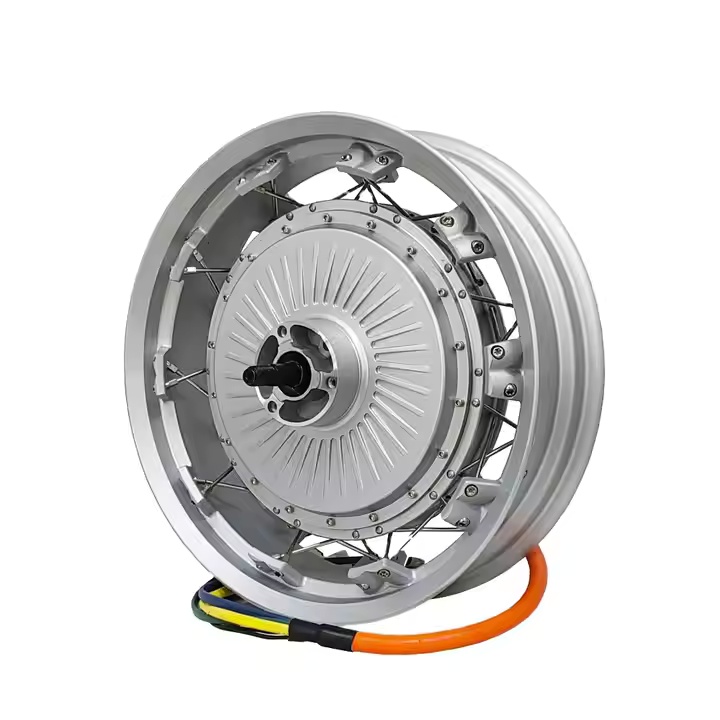

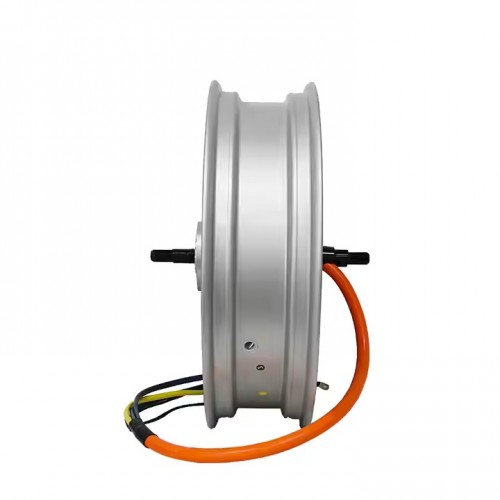

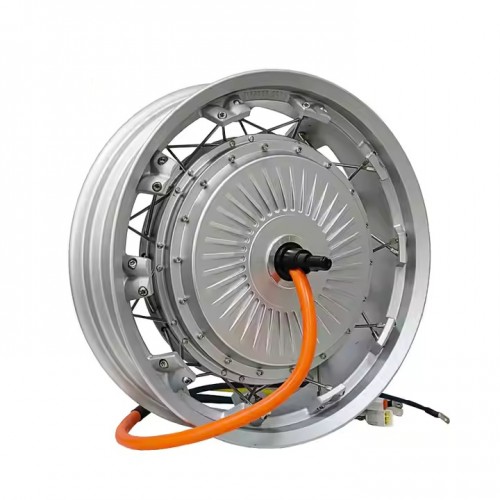

- Motor Type: BLDC Hub Motor
- Motor Design: Dual Axis, 40 Spoke Holes
- Color: Silver
- Magnet height: 50 mm, 16 pole pairs
- Rated power: 8000W
- Peak power: 16,000W peak in a few seconds.
- Rated voltage: 72V
- Speed: 72V 1210 rpm
- Maximum torque: ≥ 203N.m
- Peak input current: 250A
- Peak phase current: 600A
- Maximum Efficiency: ≥ 91%.
- Cooling method: air cooling
- Thermal Probe: KTY83/122
- Operating temperature: 70-120 °C, peak150 °C
- Hall sensors: Dual Hall kit with waterproof connector
- Phase cable: 16 mm² cross section (excluding insulation)
- Waterproof rating: IP66
- N.W./G.W.: 25.5/28 kg
- Package size: 52 cm * 44 cm/pc.
