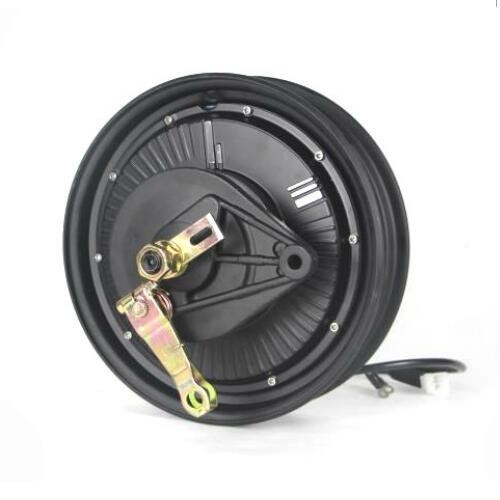

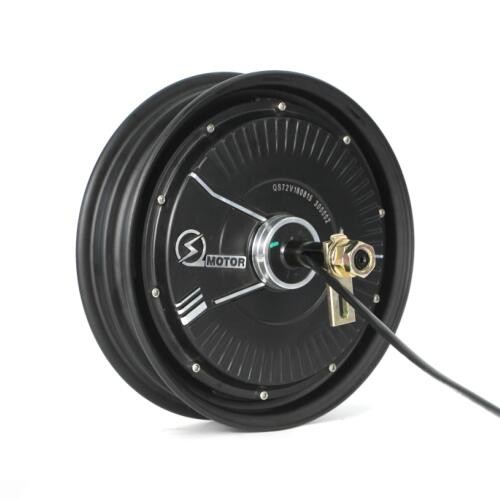

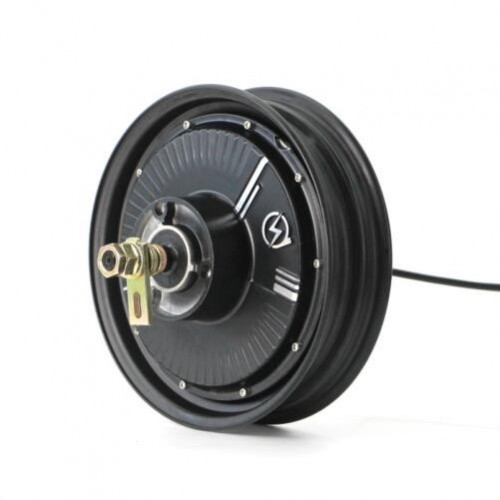

1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: Dual axle out with 10-inch rims
3. Rim size and material: 2.15-10 iron rims
4. Matching tires: 3.0-10, 3.5-10
5. magnet height: 30mm
6. Number of pole pairs: 23 pairs
7. Rated power: 800W
8. Maximum power: 1100W
9. Rated voltage: 48V/60/72V 10.
10. Speed: 25-45km/h (customizable)
11. Maximum no-load speed: approx. 500RPM
12. Maximum torque: approx. 75N.M
13. Maximum Efficiency: 88%.
14. Rated current: 20A
15. Maximum current: 30A
16. Brake type: disk brake or drum brake (optional)
17. Mounting rear fork width: 200mm
18. Phase wire cross section: 3 mm2
19. Shaft thread: M12
20. Hall sensor phase angle: 120 degrees 21.
21. Sensor type: Hall sensor (3 pcs.) 22.
22. Maximum operating temperature: 70 degrees, peak 120 degrees
23. Cooling method: air-cooled
24. Waterproof rating: IP67
25. NW/G. Weight ： 10kgs / 11kgs
