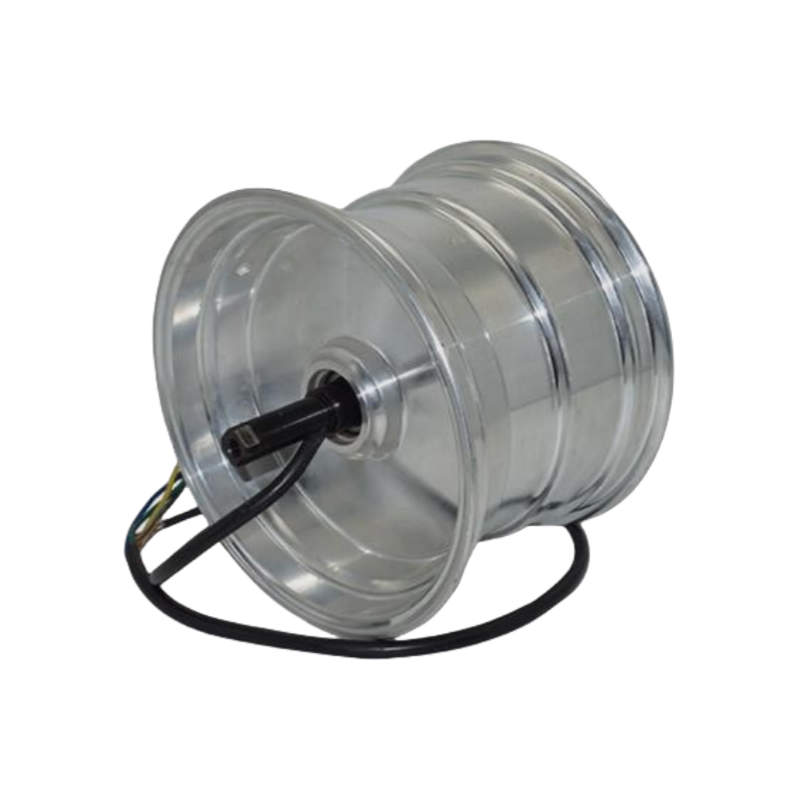

QS212 7.0x10 inch Electric Scooter Hub Motor (40H) 1500W V1 Type

2025-07-10 14:1400Inquiry
Price $1.00
Shipping China After payment, 3 days
The inventory of this product is insufficient
Product details
1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: Dual shaft output with 7.0x10-inch rims
3. rim size and material: 7x10 inch
4. magnet height: 40mm
5. Number of pole pairs: 23 pairs
6. Rated power: 1500W
7. Maximum power: 2500W
8. Rated voltage: 48V/60V/72V
9. Speed: 45km / h (30-55km / h can be customized)
10. Maximum no-load speed: 700RPM
11. Maximum torque: 105N.M
12. Maximum efficiency: 89%
13. Maximum current: 40A
14. Brake Type: Disc Brake
15. Mounting rear fork width: 200mm
16. Phase wire cross section: 6 mm2
17. Shaft thread: M12
18. Hall sensor phase angle: 120 degrees 19.
19. Sensor type: Hall sensor (3pcs)
20. Maximum operating temperature: 70 degrees, peak 120 degrees
21. Cooling method: air-cooled
22. Waterproof rating: IP66
23. NW/G...W.: 11 kg / 12 kg
