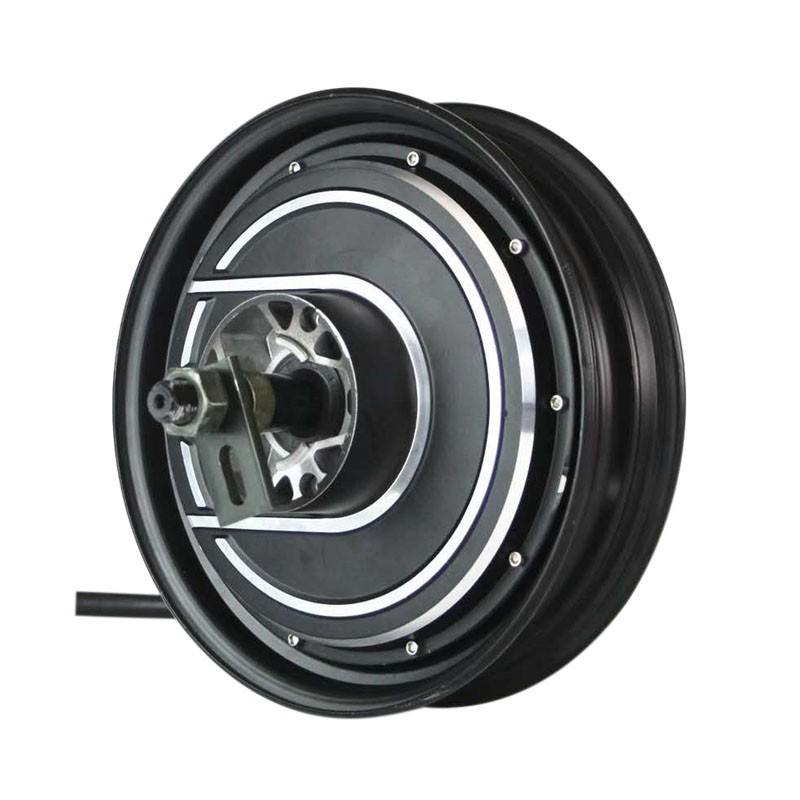

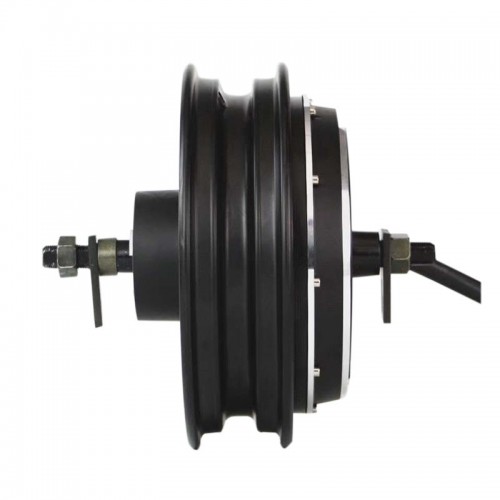

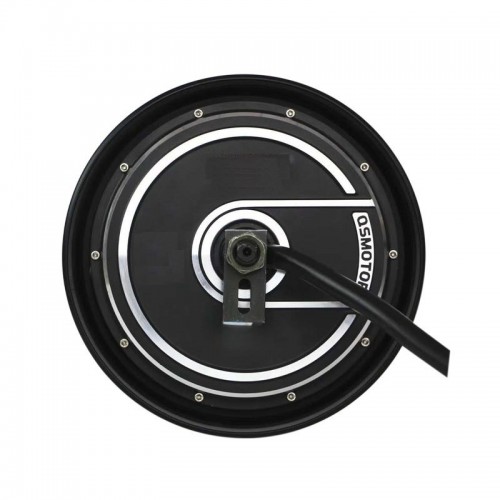

QS212 10-inch 5000W Hub Motor 60H V4 Type

2025-07-10 14:2500Inquiry
Price $241.00
Shipping China After payment, 3 days
The inventory of this product is insufficient
Product details
1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: dual axle out with 10-inch rims
3. rim size: 2.15-10
4. Matching tires: 3.0-10,3.5-10,100 / 90-10,90 / 80-10
5. magnet height: 60mm
6. Number of pole pairs: 16 pairs
7. Rated power: 5000W
8. Peak power: 9000W
9. Rated voltage: 48V, 60V, 72V
10. Maximum speed: 70KPH
11. Maximum torque: 250N.M
12. Maximum Efficiency: 91%.
13. Continuous Current: 72A at 77V
14. Maximum current : 140A
15. Brake Type: Disc Brake
16. Width of mounted rear fork: 230mm
17. Shaft diameter: M18
18. Phase wire cross section: 16 mm2 19.
19. Hall sensor phase angle: 120 degrees 20.
20. Temperature sensor: KTY83-122 21.
21. Maximum operating temperature: 70-120 degrees, peak 150 degrees 22.
22. Waterproof rating: IP66
23. Northwest / G. W.: 16kgs / 17kgs
24. Package size: 34*34*33CM
