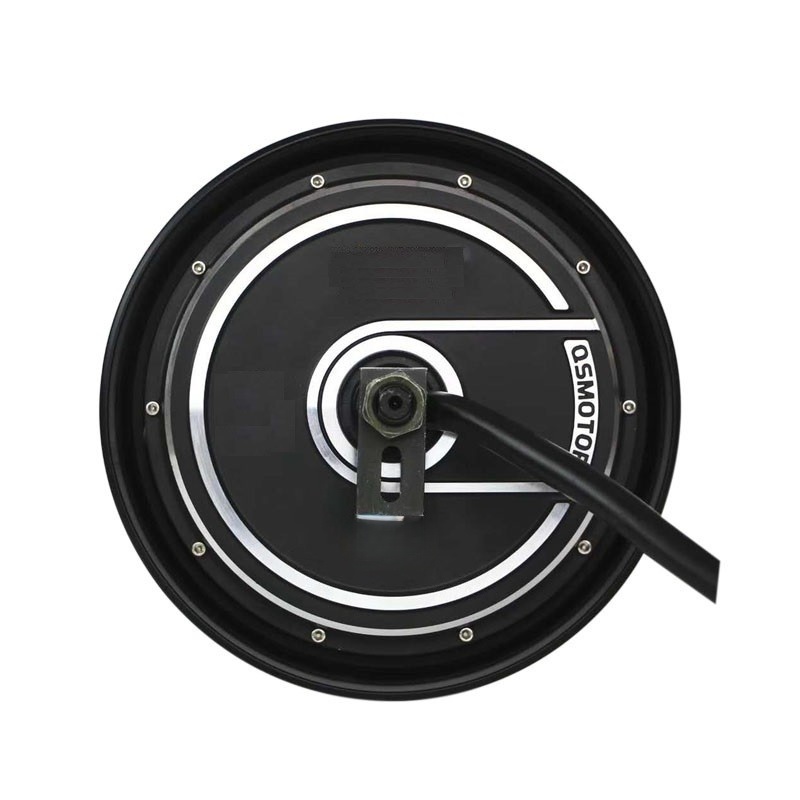

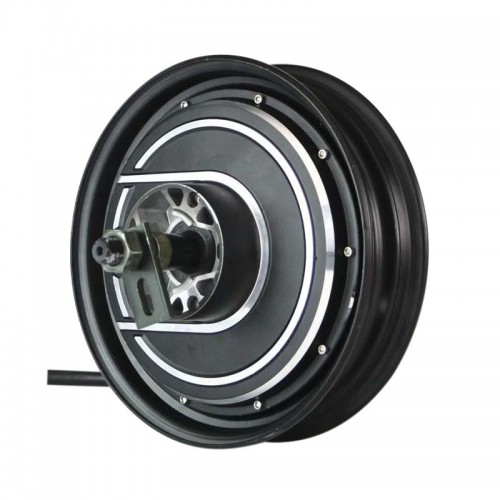

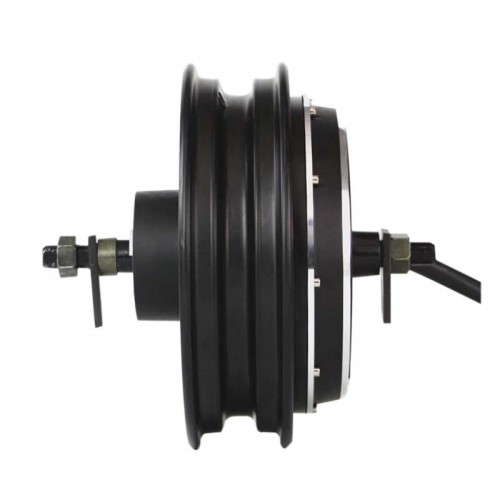

QS212 10-inch 7000W Hub Motor 70H V4 Type

2025-07-10 14:2800Inquiry
Price $241.00
Shipping China After payment, 3 days
The inventory of this product is insufficient
Product details
1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: dual axle out with 10-inch rims
3. rim size: 2.15-10
4. Matching tires: 3.0-10,3.5-10,100 / 90-10,90 / 80-10
5. magnet height: 70MM
6. Number of pole pairs: 16 pairs
7. Rated power: 7000W
8. Peak power 14000W
9. Rated voltage: 48V, 60V, 72V
10. Maximum speed: 70KPH
11. Maximum torque: 300N.M
12. Maximum Efficiency: 91%
13. Continuous Current: 100A at 72V
14. Maximum Current : 200A
15. Brake Type: Disc Brake
16. Width of mounted rear fork: 230mm
17. Shaft diameter: M18
18. Phase wire cross section: 16 mm2
19. Hall sensor phase angle: 120 degrees 20.
20. Temperature sensor: KTY83-122 21.
21. Maximum operating temperature: 70-120 degrees, peak 150 degrees 22.
22. Waterproof rating: IP66
23. NW/G. Width : 18kgs / 19kgs
24. Package Size : 34*34*33CM
