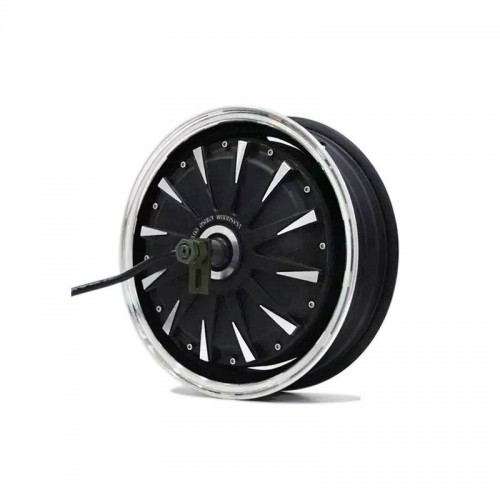

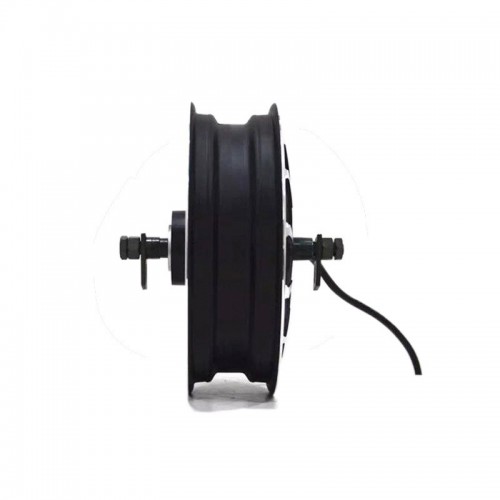

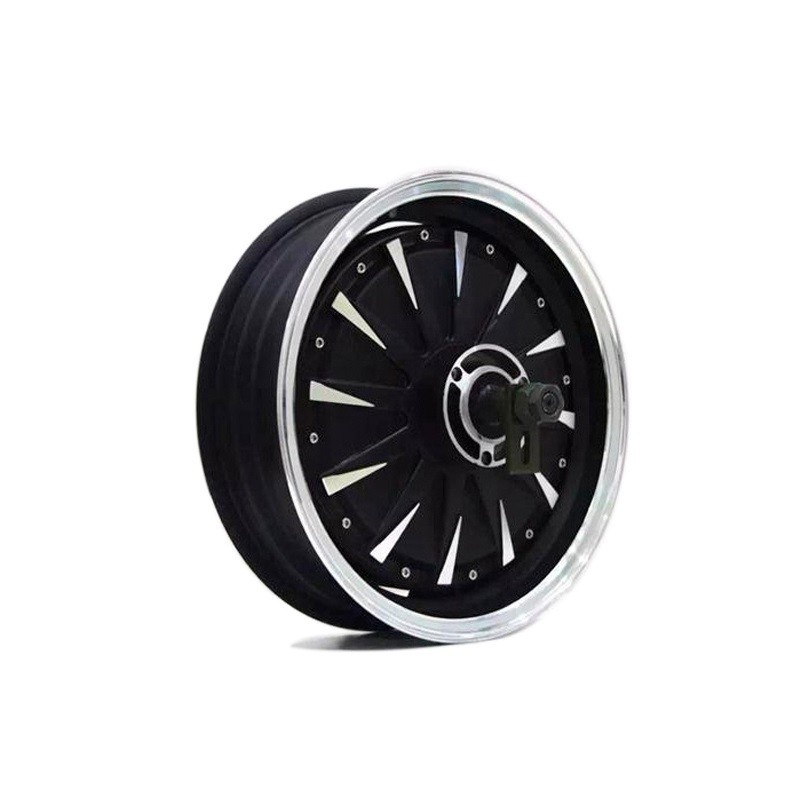

1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. motor design: twin off-axis with 13-inch rims
3. rim size: 3.5x12
4. matching tires: 120/70-13, 130/70-13
5. magnet height: 27mm
6. Number of pole pairs: 24 pairs
7. Rated power: 1000W
8. Maximum power: 1600W
9. rated voltage: 48V, 60V, 72V
10. Maximum speed: 50KPH
11. Maximum no-load speed: 650RPM (customizable)
12. Maximum torque: 110N.M
13. Maximum Efficiency: 88%
14. Continuous Current: 25A
15. Maximum current: 45A
16. Brake type: disk brake or drum brake
17. Width of mounted rear fork: 200mm
18. Phase line cross section: 4 mm2
19. Hall sensor phase angle: 120 degrees 20.
20. temperature sensor: optional
21. Maximum operating temperature: 70 degrees, 120 degrees peak 22.
22. Waterproof rating: IP67
23. Northwest / G. W.: 15 kg / 16 kg
24. package size: 44 * 43 * 34CM
