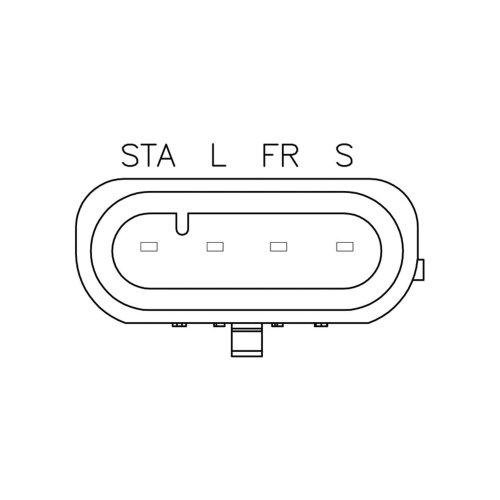

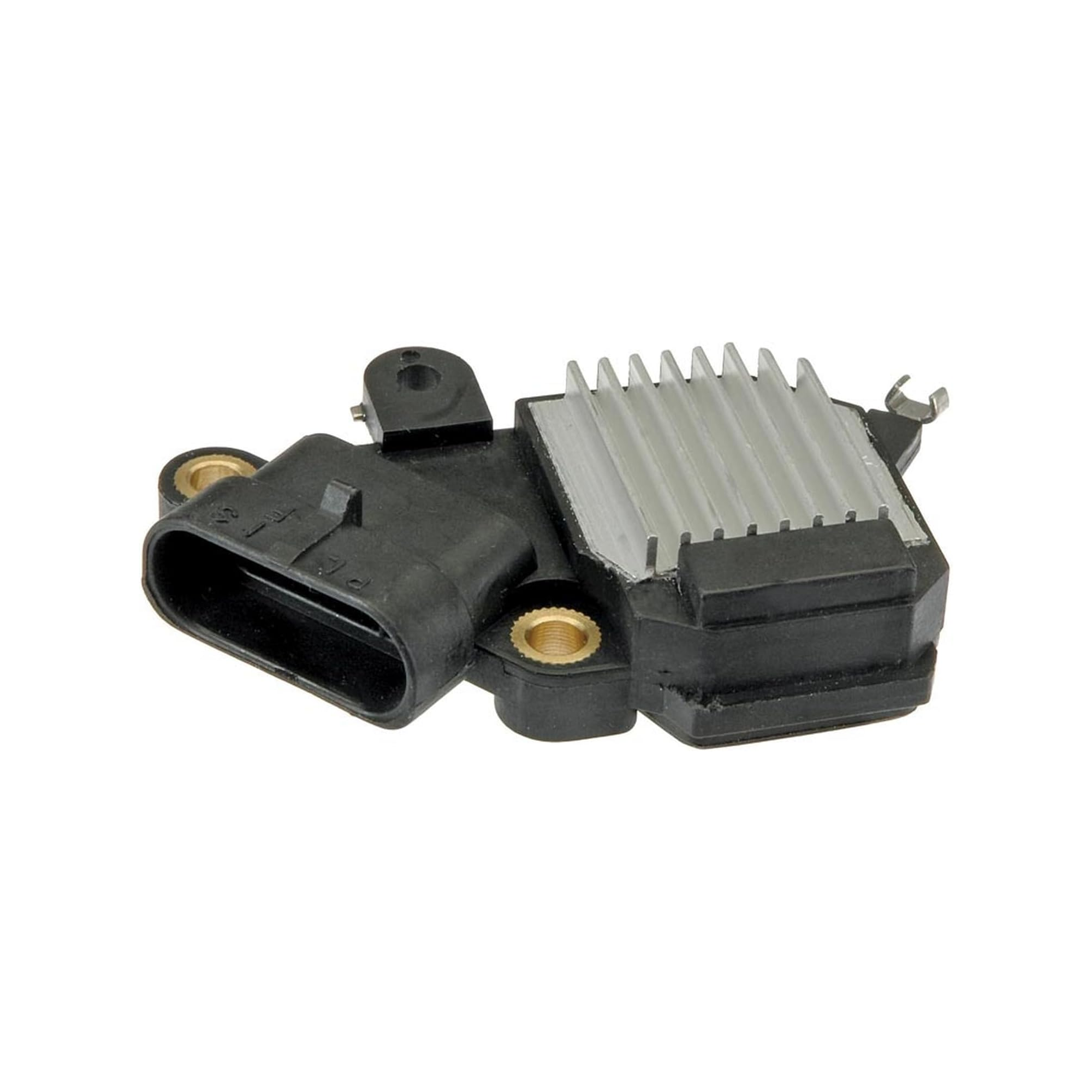

SPECIFICATIONS: 12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Vset, 2.5 sec. LRC
NOTE 1: B+ connection made at rectifier lead-frame (not under B+ stud spacer) Transpo Heavy Duty ASVR Design
FEATURE 2: OE compliant functions & performance: current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection
FEATURE 3: Welded construction - no solder joints for hi-temperature reliability & increased field life
This list is a sample of all the compatible cars for this part. Make sure this product fits your car by using the part finder above.
REPLACEMENT FOR or COMPATIBLE WITH SAAB:
9-7x V8 5.3L (05-06)
REPLACEMENT FOR or COMPATIBLE WITH OLDSMOBILE:
Intrigue V6 3.5L (99-02)
REPLACEMENT FOR or COMPATIBLE WITH ISUZU:
Ascender V8 5.3L (03-06)
REPLACEMENT FOR or COMPATIBLE WITH GMC:
Yukon XL 2500 V8 8.1L (01-02)
Yukon XL 2500 V8 6.0L (00-02)
Yukon XL 1500 V8 5.3L (00-02)
Yukon V8 5.3L (00-02)
Yukon V8 4.8L (00-02)
Sierra 3500 V8 8.1L (01-05)
Sierra 3500 V8 6.6L (01-05)
Sierra 3500 V8 6.0L (01-05)
Sierra 2500 HD V8 8.1L (01-05)
Sierra 2500 HD V8 6.6L (01-05)
Sierra 2500 HD V8 6.0L (01-05)
Sierra 2500 V8 6.0L (99-04)
Sierra 2500 V8 5.3L (99-00)
Sierra 1500 HD V8 6.0L (01-05)
Sierra 1500 V8 6.0L (02-04)
Sierra 1500 V8 5.3L (99-04)
Sierra 1500 V8 4.8L (99-04)
Sierra 1500 V6 4.3L (99-04)
Savana 3500 V8 8.1L (01-02)
Savana 3500 V8 6.5L (01-02)
Savana 3500 V8 5.7L (01-02)
Savana 2500 V8 6.5L (01-02)
Savana 2500 V8 5.7L (01-02)
Savana 2500 V8 5.0L (01-02)
Savana 2500 V6 4.3L (01-02)
Savana 1500 V8 5.7L (01-02)
Savana 1500 V8 5.0L (01-02)
Savana 1500 V6 4.3L (01-02)
Safari V6 4.3L (01-04)
Envoy V8 5.3L (05-06)
C3500HD V8 8.1L (01-02)
REPLACEMENT FOR or COMPATIBLE WITH CHEVROLET:
