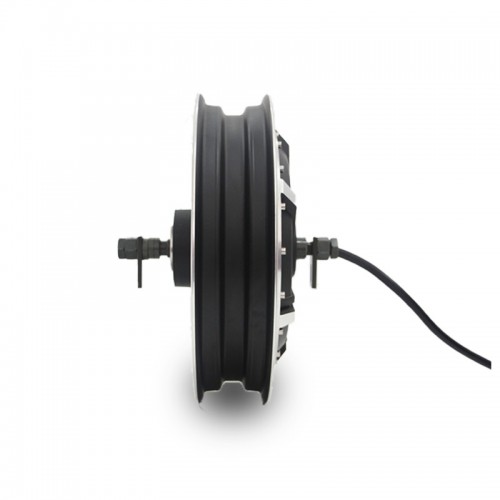

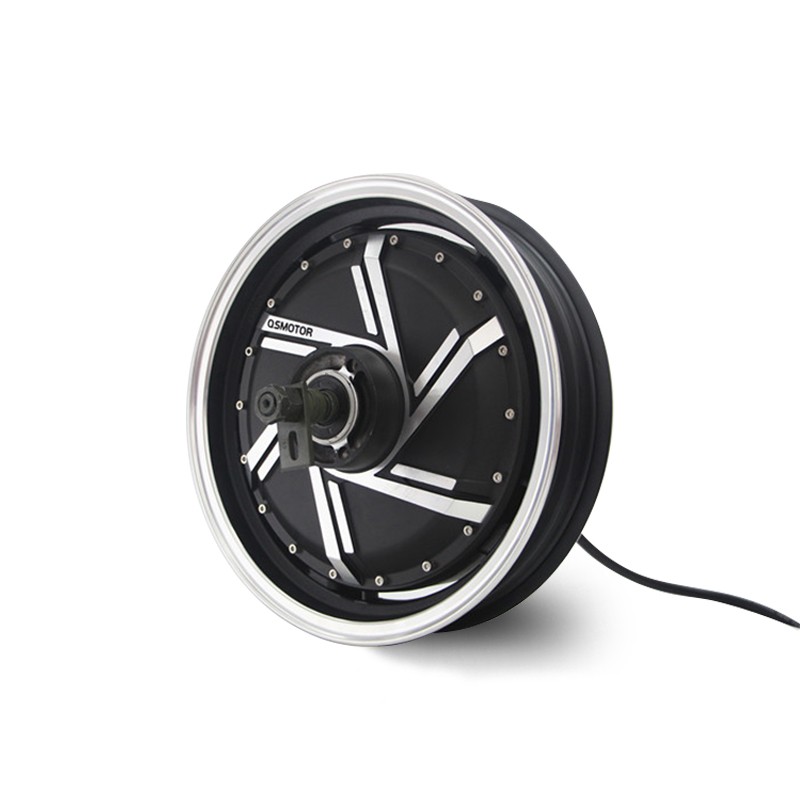

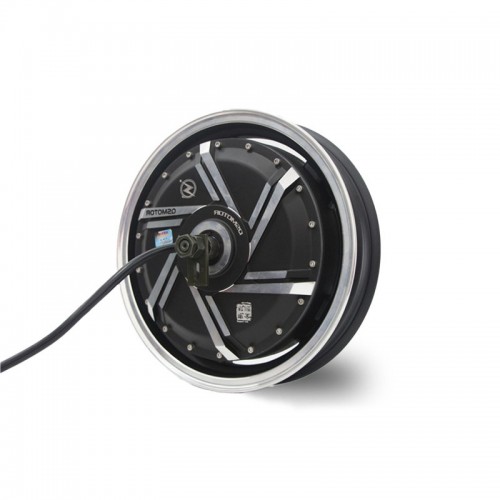

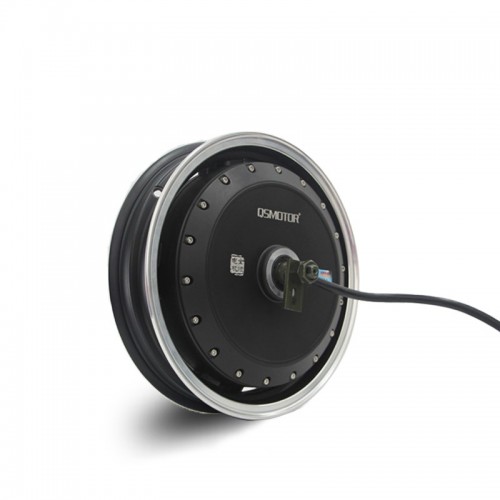

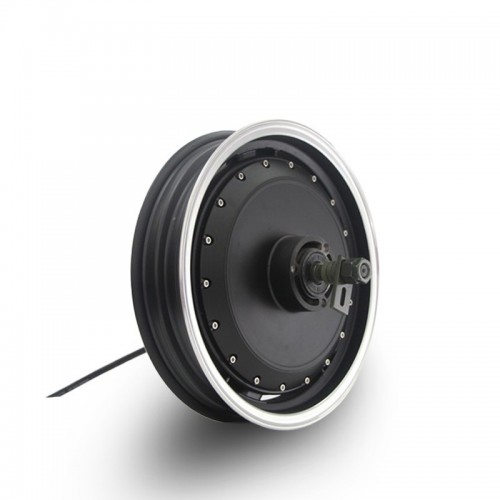

1. Motor type: BLDC hub motor with permanent magnets
2. Motor design: Dual axle out with 14" aluminum rims
3. rim size: 2.75x14
4. Tires: 110/60-14
5. magnet height: 45mm
6. number of pole pairs: 28 pairs
7. Rated power: 5000W
8. Maximum power: 7576W (peak 10000W)
9. Rated voltage: 72V (60V-144V optional)
10. Speed: 100km/h (30-100km/h can be customized)
11. Maximum no-load speed: 1243RPM
12. Maximum torque: 200N.M
13. Maximum Efficiency: 89%
14. Continuous current: 81A
15. Maximum current: 118A, peak 170A 16.
16. Brake Type: Disc Brake
17. Mounting rear fork width: 200mm
18. Winding bracket material: aluminum
19. Phase wire cross section: 16 mm2 20.
20 Hall sensor phase angle: 120 degrees 21 Temperature sensor: optional
21. Temperature sensor: optional
22. Maximum operating temperature: 70-120 degrees, peak 150 degrees 23.
23. Waterproof rating: IP66
24. Northwest/G... Weight ： 21kgs / 22kgs
25. Package Size：44*43*34CM
