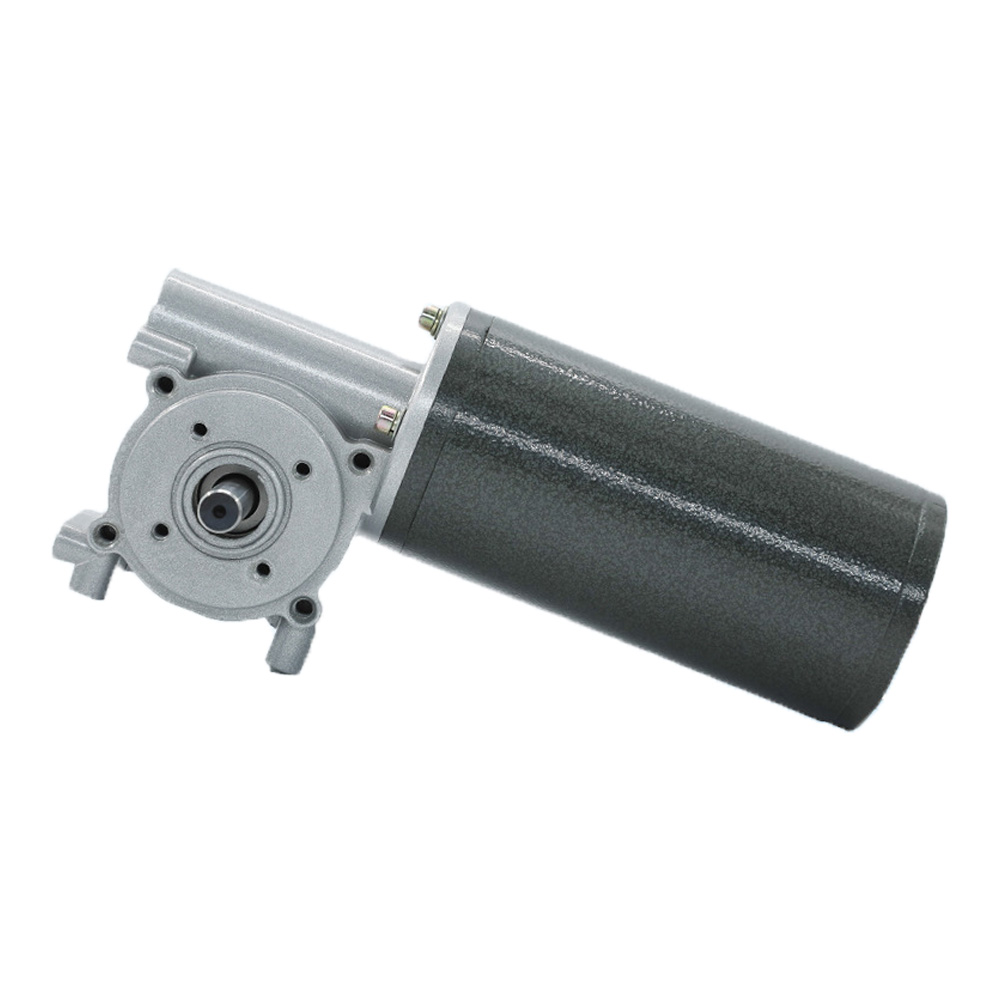

Worm Gear Reduction DC Permanent Magnet Gear Motor
1Piece Minimum order
PRODUCT PARAMETERS
Voltage |
12/24V |
|---|---|
Power |
40-80W |
Speed |
3000/3400r |
Motor Technical Data
| Type | Voltage(V) | Torque(N.cm) | Current(A) | Speed(r/min) | Power（W） | Length(mm) |
| 63ZY01 | 12/24V | 13 | 5/3 | 3000 | 40 | 97 |
| 63ZY-02 |
12/24V |
24 | 11/6 | 3400 | 80 |
127 |
Gearbox Technical Data
Ratio
Reducer size(L*W*H)(mm)
Unloaded speed(r/min)
Load speed(r/min)
Rated torque(N.m)
Max Load(N.m))
10:1
71*80*63
360
1.5
1.5
5
15:1
71*80*63
240
2
2
10
30:1
71*80*63
100
3.6
3.6
15
36:1
71*80*63
84
4.3
4.3
18
