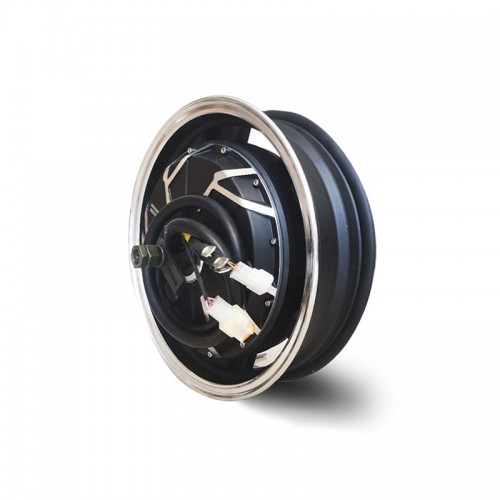

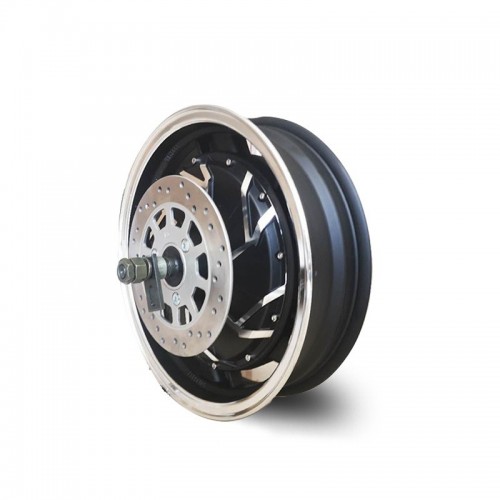

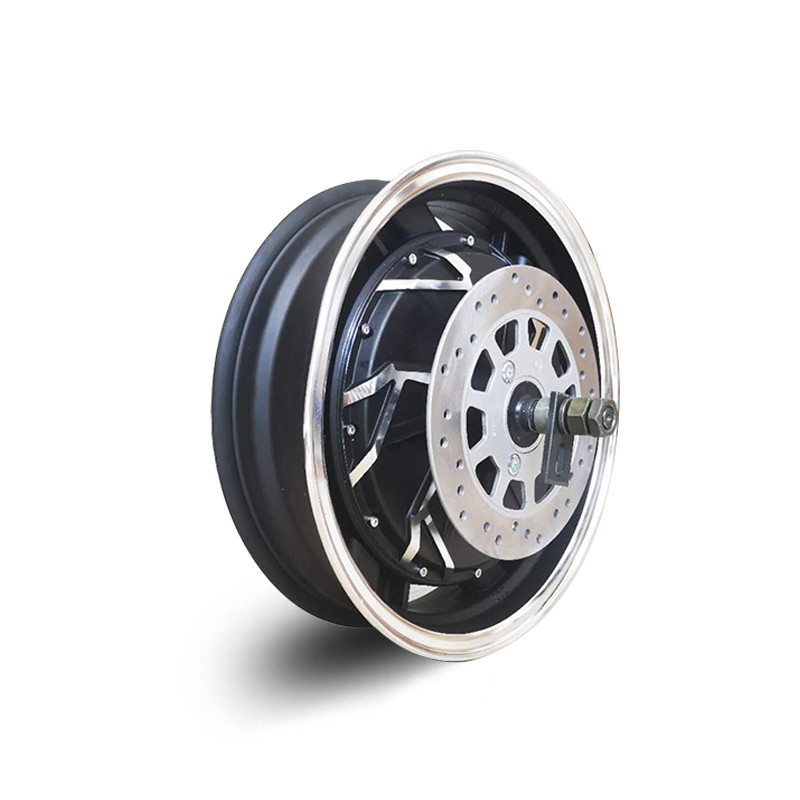

1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: Dual shaft output with 14-inch RIM
3. Rim size: 3.5x14
4. Tires: 130/60-14
5. magnet height: 40mm curved magnet
6. Number of pole pairs: 16 pairs
7. Rated power: 3000W
8. Peak power: 6000W
9. Rated voltage: 72V (48V, 60V and 72V optional)
11. Maximum torque: 240N.M
12. Maximum Efficiency: 91%.
13. Continuous Current: 46A at 72V 14.
14. Maximum Current: 80A at 72V
15. Brake Type: Disc Brake
16. Width of mounted rear fork: 200mm
17. Hall sensor: two sets of Hall sensors (Model: SS413F)
18. Winding frame material: aluminum
19. Phase wire cross section: 16mm2
20. Hall sensor phase angle: 120 degrees
21. Temperature sensor: KTY83-122
22. Maximum operating temperature: 70-120 degrees, peak 150 degrees
23. Waterproof rating: IP66
24. Working system: S9
25. Cooling Method: Natural
27. NW/G. Weight : 18.5kgs / 20kgs
28. package size : 44*43*34CM
