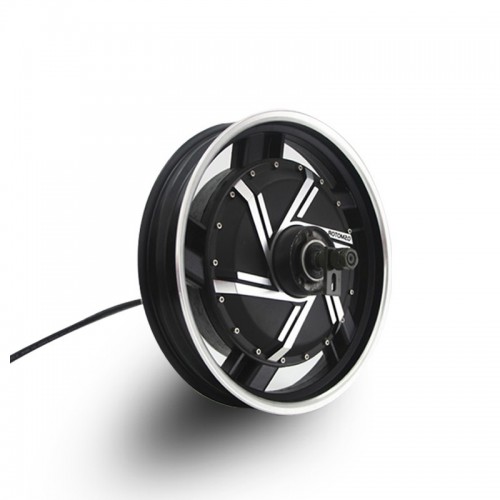

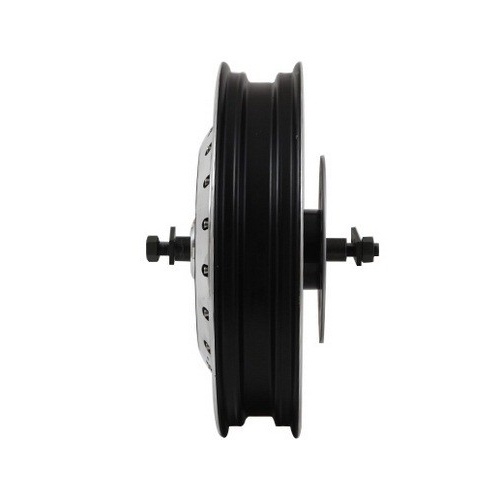

1. Motor type: BLDC hub motor with permanent magnets
2. Motor design: Dual off-axis with 16" aluminum rims
3. rim size: 3.0x16
4. Matching Tires: 120/60-16
5. magnet height: 50MM
6. pole pair number: 28 paris
7. Rated power: 7000W
8. Maximum power: 8600W (peak 14000W)
9. rated voltage: 72V (72-144V optional)
10. speed: 115km/h (30-115km/h customizable)
11. Maximum no-load speed: 1440RPM
12. Maximum torque: 200N.M
13. Maximum Efficiency: 89%.
14. Continuous current: 114A
15. Maximum current: 140A, peak 240A 16.

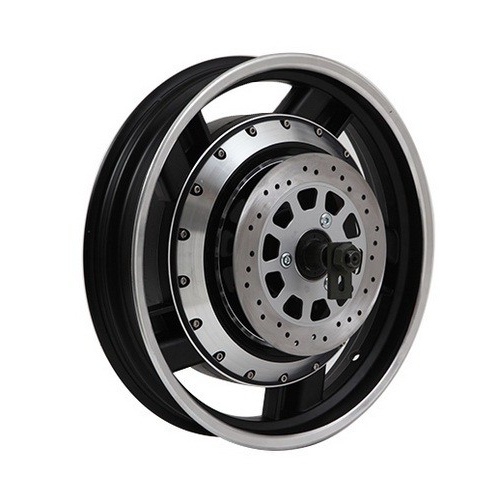

16. Brake Type: Disc Brake
17. Fog width after installation: 200mm
18. Winding bracket material: aluminum
19. Phase wire cross section: 16 mm2 20.
20 Hall sensor phase angle: 120 degrees 21 Temperature sensor: optional
21. temperature sensor: optional
22. Maximum operating temperature: 70-120 degrees, peak 150 degrees
23. Waterproof rating: IP66
24. Northwest/G... Width : 22kgs / 23kgs
25. Package size: 44*43*34CM
